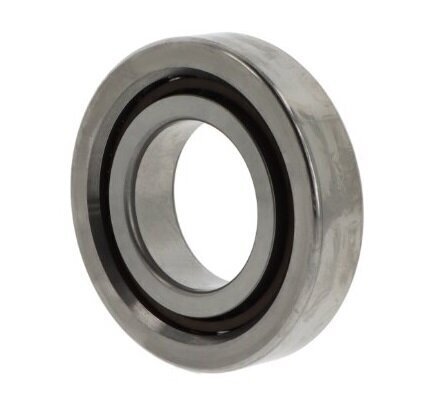

7602040-TVP FAG Axial Angular Contact Ball Bearing 40mm x 80mm x 18mm
The 7602040-TVP FAG Axial Angular Contact Ball Bearing is a precision-engineered bearing designed for demanding applications requiring reliable axial and radial load support in controlled operating environments. With its compact 40mm bore, 80mm outer diameter, and 18mm width, this bearing delivers exceptional performance in space-constrained installations while maintaining superior operational efficiency.
Key Performance Features:
- 60 degree contact angle enables simultaneous support for both radial and high axial forces
- Single direction bearing capability optimized for unidirectional axial loading
- High accuracy and precision load carrying capacity for demanding industrial applications
- Superior rigidity and low friction characteristics for optimal operational efficiency
- Open sealing design for optimized performance in controlled environments
- Lightweight and reduced friction operation with polyamide cage construction
Design & Construction:
- Polyamide cage construction for lightweight performance and reduced friction
- Standard bearing steel material ensures durability and reliability in demanding conditions
- Open sealing type for applications in controlled, low-contamination environments
- Without fixing holes for flexible integration into existing mounting designs
- Without lubrication groove - optimized for external lubrication management
- Special tolerance class for enhanced precision and performance
- Compact dimensional envelope suitable for space-critical installations
Specifications:
- Bore Diameter: 40mm
- Outer Diameter: 80mm
- Width: 18mm
- Contact Angle: 60 degree
- Cage Material: Polyamide
- Operating Direction: Single direction
- Sealing Type: Open
- Temperature Range: -30 degreeC to +120 degreeC
- Tolerance Class: Special
- Manufacturer: FAG
- Reference: 7602040-TVP
Typical Applications:
Ideal for precision machinery, compact rotating equipment, and applications where single-direction axial load support is essential. Well-suited for ball screw assemblies, spindles, machine tool equipment, and other precision industrial applications operating in environments where controlled lubrication management is preferred. Perfect for systems demanding reliable performance across a wide temperature range with high precision and low-friction operation.
As part of the FAG precision bearing range, this bearing combines proven engineering excellence with reliable open-design construction for industrial applications demanding superior performance and precision.
