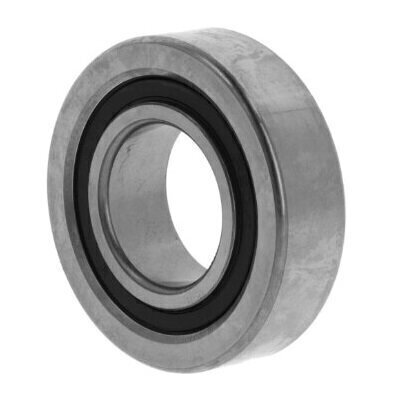

7602020-2RS-TVH FAG Axial Angular Contact Ball Bearing 20mm x 47mm x 14mm
7602020-2RS-TVH FAG Axial Angular Contact Ball Bearing
This compact axial angular contact ball bearing from FAG delivers precision performance in space-constrained applications requiring reliable support of combined radial and axial forces. With a 20mm bore, 47mm outer diameter, and 14mm width, the 7602020-2RS-TVH is engineered for single-direction load applications with sealed protection for enhanced durability and low maintenance.
Key Performance Features:
- 60 degree contact angle for simultaneous support of radial and high axial forces
- Sealed design (2RS) for robust protection against contamination and moisture
- Single-direction bearing configuration for optimized load support in one direction
- High precision engineering with special tolerance class for critical applications
- Polyamide cage construction for stable operation and reduced friction
- Low-maintenance sealed bearing design for reliable long-term performance
Design & Construction:
- Bore Diameter: 20mm
- Outer Diameter: 47mm
- Width: 14mm
- Sealing Type: Sealed with integral seals (2RS) for contamination protection
- Cage Material: Polyamide cage for smooth operation and durability
- Mounting: Without fixing holes for flexible installation options
- Material: Standard bearing steel for proven reliability
- Operating Direction: Single direction bearing for unidirectional loads
- Lubrication: Without lubrication groove; sealed for minimal maintenance
- Temperature Range: -30 degreeC to +120 degreeC for diverse operating environments
- Tolerance Class: Special tolerance for precision applications
Ideal Applications:
The 7602020-2RS-TVH is particularly well-suited for compact spindle systems, precision ball screw assemblies, automotive drive systems, and industrial machinery where space efficiency and sealed protection are essential. The single-direction design and sealed construction make it ideal for applications in environments with dust, moisture, or moderate contamination where maintenance-free operation is preferred.
As part of FAG's precision bearing range, this bearing combines compact design with proven engineering reliability for demanding industrial and precision applications.
