Quick Code: BB-531332

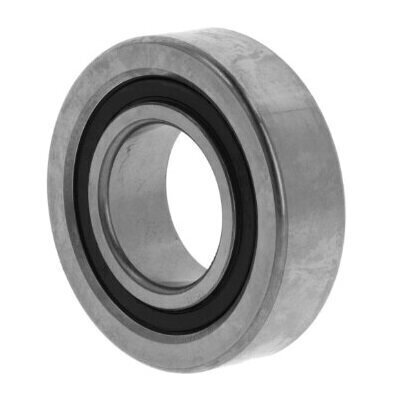

7602015-2RS-TVH FAG Axial Angular Contact Ball Bearing 15mm x 35mm x 11mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
FAG
Cage
Polyamide cage
Contact angle
60 degree
Fixing
Without fixing holes
Inside Dia
15mm
Lubrication hole
Without lubrication groove
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia
35mm
Product range
Single bearing
Sealing Type
Sealed
Temperature range
-30 to +120 °C
Tolerance class
Special tolerance
Width
11mm
Reference
7602015-2RS-TVH
Additional Reference:
10190090
Quick Order Code
BB-531332
Product Description
7602015-2RS-TVH FAG Axial Angular Contact Ball Bearing
This precision axial angular contact ball bearing is engineered for dynamic applications requiring reliable performance, accuracy, and efficient load handling in a compact form factor. Measuring 15mm × 35mm × 11mm, the 7602015-2RS-TVH delivers exceptional value for applications where space constraints and cost-effectiveness are critical without compromising on quality.
Key Performance Features
- Single direction bearing design optimized for unidirectional axial and radial load support
- 60 degree contact angle for superior load distribution and handling of combined axial and radial forces
- Sealed design (2RS) with dual lip seals for maintenance-free operation and contamination protection
- High rigidity and low friction performance for smooth, reliable operation
- Compact 11mm width ideal for space-constrained applications
Construction & Design
- Brand: FAG - renowned for precision bearing engineering
- Standard bearing steel construction for proven durability and long-term reliability
- Polyamide cage for consistent performance and reduced maintenance requirements
- Special tolerance class for applications requiring controlled precision specifications
- Without fixing holes for flexible installation and simplified integration into existing systems
- Without lubrication groove - pre-lubricated for ready-to-use convenience
- Operating temperature range: -30 to +120 degreeC for diverse environmental applications
Ideal Applications
- Compact machinery and equipment with limited mounting space
- Medical and precision instrumentation requiring reliable small-format bearings
- Automotive and industrial pump applications
- Gearboxes and transmission systems with moderate load requirements
- Small motor and motor-driven equipment
- Applications requiring sealed, maintenance-free bearing solutions
The 7602015-2RS-TVH combines FAG's engineering excellence with a compact, economical design, making it an ideal choice for applications demanding precision performance in a small package.
