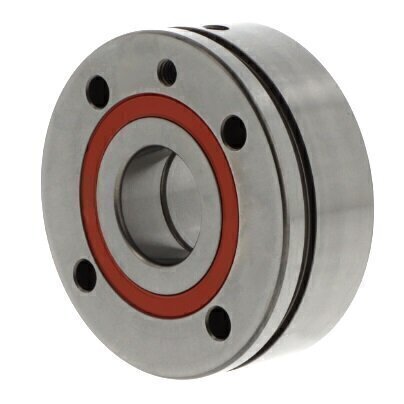

40TAU10F-2NSE/GM Nachi Axial Angular Contact Ball Bearing 40mm x 100mm x 34mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
Nachi
Cage
Polyamide cage
Contact angle
60 degree
Fixing
With fixing holes
Inside Dia
40mm
Lubrication hole
With lubrication groove
Material
Standard bearing steel
Operating direction
Double direction bearing
Outside Dia
100mm
Product range
Single bearing
Sealing Type
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P4 / ABEC 7
Width
34mm
Reference
40TAU10F-2NSE/GM
Additional Reference:
10150545
Quick Order Code
BB-524974
Product Description
40TAU10F-2NSE/GM Nachi Axial Angular Contact Ball Bearing
This precision axial angular contact bearing is engineered for highly dynamic operating conditions in demanding applications requiring exceptional accuracy, load capacity, rigidity, and low friction performance. With a 40mm bore and 100mm outer diameter, the 40TAU10F-2NSE/GM delivers reliable performance in applications where both radial and axial forces must be efficiently managed.
Key Performance Characteristics:
- Supports both radial and high axial forces with precision 60 degree contact angle design
- Double direction load capacity for bidirectional force handling
- High rigidity and accuracy for precision machinery applications
- Low friction performance for extended service life and energy efficiency
- Sealed design to protect against contaminants and maintain optimal lubrication
Design Features:
- Nachi premium bearing steel construction for superior durability
- Polyamide cage for reliable guidance and reduced wear
- Integrated fixing holes for direct mounting on adjacent construction
- Integrated lubrication groove for efficient grease distribution
- Sealed bearing design for maintenance-free or low-maintenance operation
- Tolerance class P4 / ABEC 7 for high precision applications
Specifications:
- Bore Diameter: 40mm
- Outer Diameter: 100mm
- Width: 34mm
- Contact Angle: 60 degree
- Sealing Type: Sealed
- Operating Direction: Double direction bearing
- Cage Material: Polyamide
- Tolerance Class: P4 / ABEC 7
- Operating Temperature Range: -20 degreeC to +120 degreeC
- Manufacturer: Nachi
- Reference: 40TAU10F-2NSE/GM
Typical Applications:
Ideal for precision spindle assemblies, machine tool applications, screw drive systems, industrial machinery, and other high-performance applications where reliability, accuracy, and efficient load handling are critical requirements.
