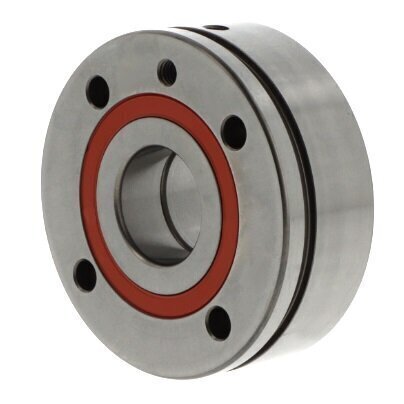

35TAU09F-2NSE/GM Nachi Axial Angular Contact Ball Bearing 35mm x 90mm x 34mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
Nachi
Cage
Polyamide cage
Contact angle
60 degree
Fixing
With fixing holes
Inside Dia
35mm
Lubrication hole
With lubrication groove
Material
Standard bearing steel
Operating direction
Double direction bearing
Outside Dia
90mm
Product range
Single bearing
Sealing Type
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P4 / ABEC 7
Width
34mm
Reference
35TAU09F-2NSE/GM
Additional Reference:
10150544
Quick Order Code
BB-524973
Product Description
The 35TAU09F-2NSE/GM Nachi Axial Angular Contact Ball Bearing is a precision-engineered bearing designed for highly dynamic operating conditions requiring exceptional performance and reliability. With its 60 degree contact angle, this bearing efficiently supports both radial and high axial forces simultaneously, making it ideal for complex loading scenarios in demanding industrial applications.
Key Performance Features:
- High precision engineering with P4/ABEC 7 tolerance class
- Superior load carrying capacity for heavy-duty applications
- High rigidity for stable and accurate operation
- Low friction design for efficient performance
- Double direction capability for bidirectional load support
- Sealed design for enhanced protection and minimal maintenance
Design & Construction:
- Bore Diameter: 35mm | Outer Diameter: 90mm | Width: 34mm
- 60 degree contact angle for dual-force capacity
- Polyamide cage for reliable ball retention
- Standard bearing steel construction for durability
- Fixing holes for secure installation
- Lubrication groove for optimized maintenance
- Sealed on both sides for protection against contaminants
Operating Specifications:
- Temperature Range: -20 degreeC to +120 degreeC
- Tolerance Class: P4 / ABEC 7
- Nachi brand reliability and precision
Ideal Applications:
This axial angular contact bearing is particularly suited for precision machinery, high-speed spindles, ball screws, screw drive systems, and other applications where reliable performance in demanding industrial environments is critical. The sealed design ensures maintenance-free operation in challenging conditions.
