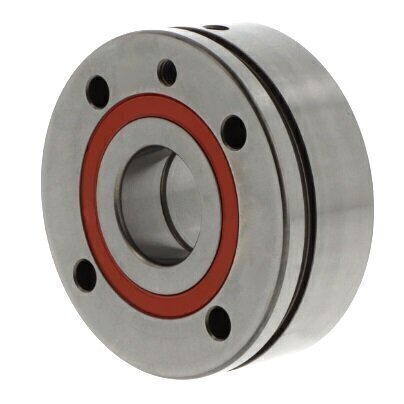

30TAU08F-2NSE/GM Nachi Axial Angular Contact Ball Bearing 30mm x 80mm x 28mm
30TAU08F-2NSE/GM Nachi Axial Angular Contact Ball Bearing
This precision axial angular contact bearing from Nachi is engineered for highly dynamic operating conditions, delivering exceptional performance in demanding applications that require high accuracy, load capacity, rigidity, and low friction operation. With a 60 degree contact angle, it efficiently supports both radial and high axial forces, making it an ideal choice for industrial machinery, screw drive systems, and precision equipment.
Key Design Features:
- Double direction capability for bidirectional load support
- Polyamide cage construction for durability and optimal performance
- Fixed mounting holes for secure, direct installation
- Sealed design for enhanced protection and low-maintenance operation
- Lubrication groove for efficient lubrication management
- Standard bearing steel construction for reliable, long-lasting operation
- P4/ABEC 7 tolerance class for enhanced precision and performance
Specifications:
- Bore Diameter: 30mm
- Outer Diameter: 80mm
- Width: 28mm
- Contact Angle: 60 degree
- Cage Material: Polyamide
- Sealing Type: Sealed
- Operating Direction: Double direction
- Temperature Range: -20 degreeC to +120 degreeC
- Tolerance Class: P4/ABEC 7
- Lubrication: With lubrication groove
- Fixing: With fixing holes
- Product Type: Single bearing
Ideal Applications:
The 30TAU08F-2NSE/GM bearing is particularly well-suited for precision machinery and industrial equipment, including screw drives, spindle systems, heavy-duty gearboxes, and other applications requiring high rigidity, exceptional load-carrying capacity, and minimal friction in demanding environments. The sealed design with lubrication groove ensures reliable performance while minimizing maintenance requirements.
