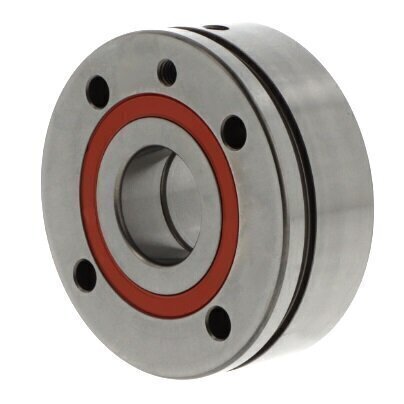

17TAU06F-2NSE/GM Nachi Axial Angular Contact Ball Bearing 17mm x 62mm x 25mm
17TAU06F-2NSE/GM Nachi Axial Angular Contact Ball Bearing
This precision axial angular contact bearing from Nachi is engineered to deliver exceptional performance in demanding industrial applications requiring simultaneous support of radial and high axial forces. With a 17mm bore, 62mm outer diameter, and 25mm width, the 17TAU06F-2NSE/GM combines robust load capacity with high accuracy and low-friction operation for reliable performance in compact, space-optimized installations.
Key Performance Features:
- 60 degree contact angle for simultaneous support of radial and high axial forces
- High load carrying capacity and rigidity for precision applications
- Superior accuracy and minimal friction for efficient power transmission
- Double-direction bearing capability for bidirectional load support
- Sealed design with integrated sealing for enhanced protection against contaminants
- Polyamide cage construction for reliable operation under dynamic conditions
- P4 / ABEC 7 tolerance class for exceptional precision and reliability
- Integrated lubrication groove for optimized lubrication delivery
Design & Construction:
- Bore Diameter: 17mm
- Outer Diameter: 62mm
- Width: 25mm
- Contact Angle: 60 degree
- Sealing Type: Sealed design for protection in contaminated environments
- Cage Material: Polyamide cage for durability and lightweight performance
- Mounting: Integrated fixing holes for direct mounting in bearing housings
- Lubrication: With lubrication groove for efficient lubricant distribution
- Material: Standard bearing steel for proven durability
- Operating Direction: Double direction (bidirectional)
- Tolerance Class: P4 / ABEC 7 (high precision)
- Temperature Range: -20 degreeC to +120 degreeC for versatile operating environments
- Product Type: Single bearing
Ideal Applications:
The 17TAU06F-2NSE/GM is particularly well-suited for precision ball screw assemblies, spindle mechanisms, screw drive systems, industrial gearboxes, and other high-speed rotating equipment requiring reliable combined axial and radial load capacity. The sealed design with integrated lubrication groove makes it ideal for applications in variable environmental conditions or where contamination protection is essential.
As part of the Nachi precision bearing range, this bearing combines proven engineering excellence with reliability for industrial applications demanding superior performance and durability.
