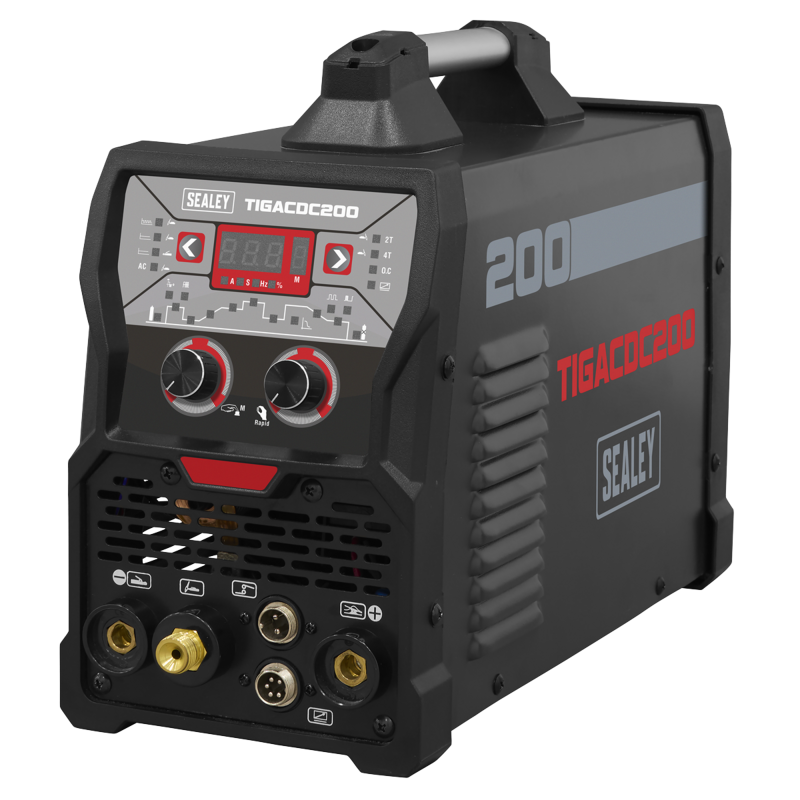

Sealey TIGACDC200 200A TIG/MMA AC/DC Pulse Inverter Welder 230V
Also Try
Accessories
Consumables
MIG Welders
Plasma
Buy Now
Product Specification
Absorbed Power
5.4KW
Brand
Sealey
Duty Cycle
AC - 100% @ 110A, 60% @ 141A, 30% @ 200A
DC - 100% @ 93A, 60% @ 120A, 30% @170A
Electrode Capacity
Ø1.6-4mm
Insulation Class
F
Model No
TIGACDC200
Nett Weight
8.5kg
Note
*to achieve maxiumum power a 32A supply may be required.
Power Output
10-200A
Protection
IP21S
Supply
230V*
Reference
TIGACDC200
Quick Order Code
BB-657535
Product Description
IGBT INVERTER TECHNOLOGY - IGBT Inverter technology fitted with fan-cooled AC/DC power supply suitable for both TIG and MMA/ARC welding applications up to 200A. SUITABLE FOR WELDING A VARTIETY OF METALS - Suitable for welding a variety of metals including aluminium, magnesium, stainless steel, steel, copper, nickel and titanium.
MULTI-STAGE INVERTER - 20-stage parameter adjustment program to suit welder's requirements.

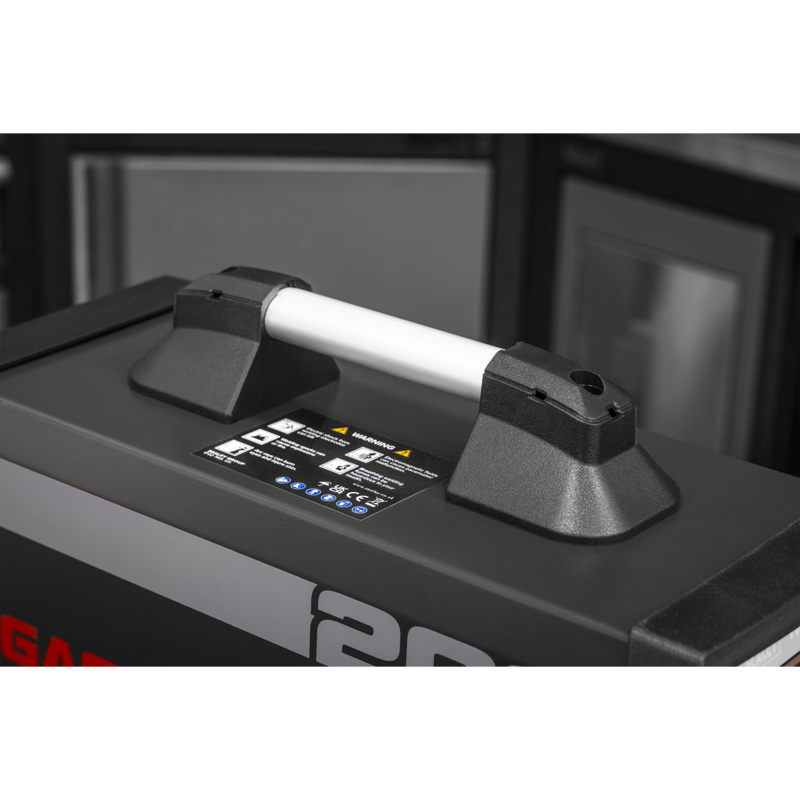

LIGHTWEIGHT AND PORTABLE Weighing 8.5kg this welder is highly portable allowing the welder to be taken to the job at hand making it ideal for the mobile technician.

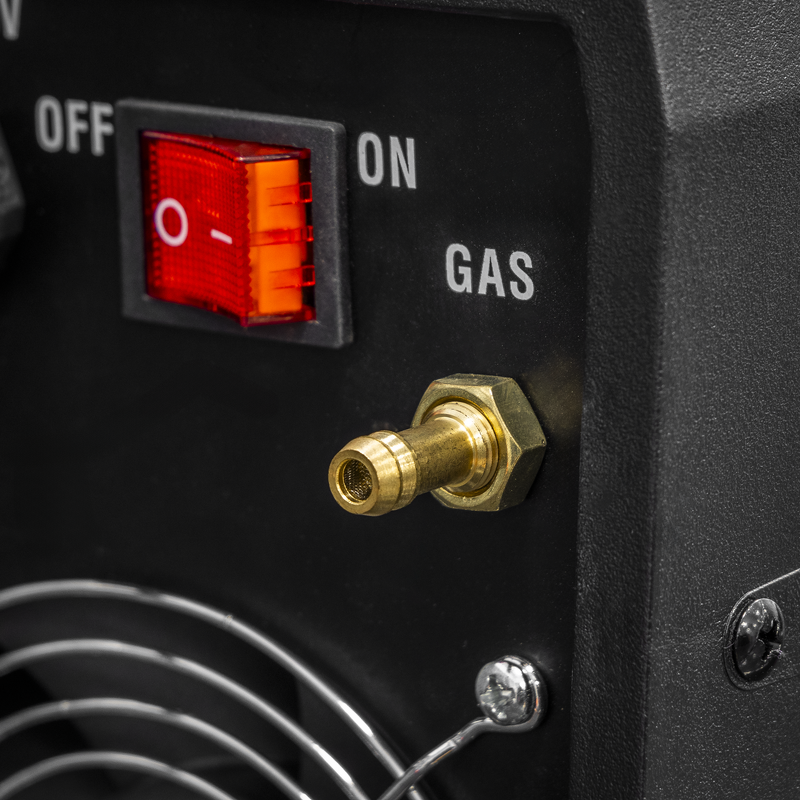

FEATURING Features hot start, anti-stick, forced air cooling, thermal cut-out protection and quick release switch on the torch for control of gas, saving on consumption.
LIFT START - Suitable for MMA/ARC welding using the lift start method for better weld quality.
ACCESSORIES SUPPLIED - Supplied with earth clamp, TIG torch and accessories, electrode holder and foot pedal.
