Quick Code: BB-446893
Sealey INVMIG200LCD Inverter Welder MIG, TIG MMA 200A with LCD Screen
Also Try
Accessories
Consumables
MIG Welders
Plasma
Electric
Starters & Chargers
Precision Spindle Bearings
Buy Now
Qty:
Product Specification
Absorbed Power
8.6kW
Brand
Premier
Duty Cycle
Electrode Capacity
1.6 - 4mm
Insulation
IP21S
IP Rating
MIG
20% @ 200A, 100% @ 89A
MIG Torch
Euro Non-Live BINZEL® MB15*
MMA (Arc)
20% @ 180A, 100% @ 80A
MMA Accessory Kit (Optional)
MMA01
Model No
INVMIG200LCD
Nett Weight
15kg (power source only)
Note
* included as standard
** To acheive maximum power a 32A supply may be required.
Protection
F
Supply
230V **
TIG
20% @ 180A, 100% @ 80A
TIG Accessory Kit (Optional)
TIG10S
Weight
17kg
Wire Capacity
5kg
Reference
INVMIG200LCD
Quick Order Code
BB-446893
Product Description
3-in-1 WELDER - Uses state-of-the-art inverter technology to achieve MIG/TIG/MMA (Arc).INVERTER TECHNOLOGY - Offers many advantages over traditional transformer type welders, giving greater duty cycles and more power factor efficiency.
FAN COOLED - DC power supply for MIG and TIG, suitable to weld steel, stainless steel, copper, nickel, titanium, and their alloys.
ALSO SUITABLE FOR ARC WELDING - A variety of rods including rutile, basic and stainless from 1.6 to 4mm.

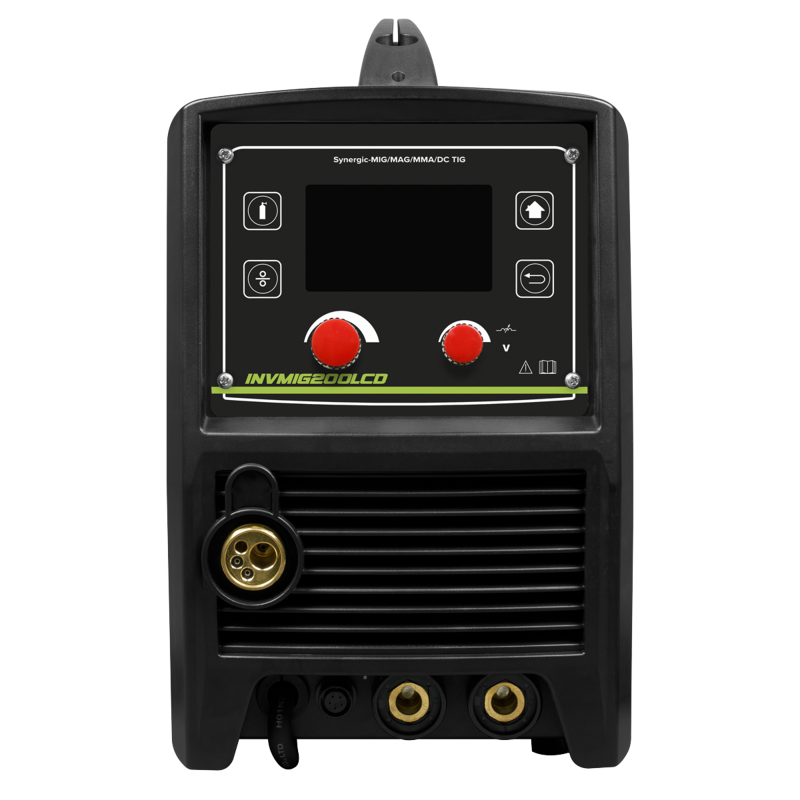

FULLY FUNCTIONAL - LCD front panel with easy to follow set-up.
UP TO FOUR SET UPS - Can be saved on the machine for fast loading.
SWITCHABLE - Between MIG, TIG or MMA welding modes (optional torches required).
3 YEAR GUARANTEE.
