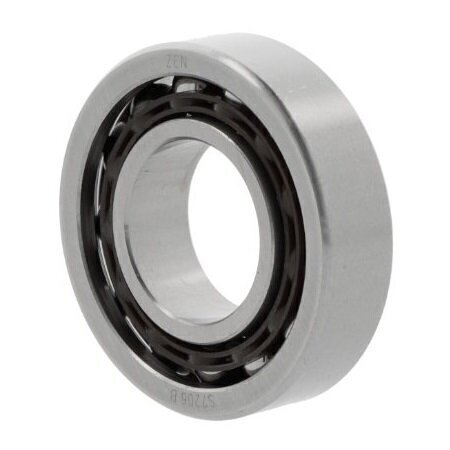

S7207-B Zen Single Row Angular Contact Ball Bearing 35mm x 72mm x 17mm
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
Zen
Cage
Polyamide cage
Clearance
Normal radial clearance
Contact angle
40 degree
Inside Dia
35mm
Material
Stainless steel
Outer ring
Without flange/groove
Outside Dia
72mm
Row Type
Single
Seal
None, open bearing
Temperature range
-20 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
17mm
Reference
S7207-B
Additional Reference:
10128170
Quick Order Code
BB-517576
Product Description
S7207-B Zen Single Row Angular Contact Ball Bearing
This reliable single row angular contact ball bearing from Zen is engineered to handle combined radial and axial loads simultaneously, making it an excellent choice for precision applications requiring robust performance at competitive value. With a 35mm bore diameter and 72mm outer diameter, this bearing delivers consistent performance across a wide range of industrial and mechanical environments.
Key Specifications:
- Bore Diameter: 35mm
- Outer Diameter: 72mm
- Width: 17mm
- Type: Single Row Angular Contact
- Contact Angle: 40°
- Manufacturer: Zen
- Reference Number: S7207-B
- Material: Stainless Steel
- Cage: Polyamide construction
- Clearance: Normal radial clearance
- Seal Type: Open bearing (unsealed)
- Tolerance Class: P0/PN2 (ABEC 1)
- Temperature Range: -20°C to +150°C
Features & Benefits:
- 40° contact angle for optimized load distribution and precision performance
- Single row design accommodates axial loads acting in one direction only
- Stainless steel construction provides excellent corrosion resistance
- Polyamide cage ensures reduced friction and reliable ball centring
- Standard arrangement with normal radial clearance for versatile applications
- Open bearing design suitable for clean, dry operating environments
- Wide operating temperature range from -20°C to +150°C
Typical Applications:
- Machine tool spindles
- Gearboxes and transmission systems
- Electric motors and generators
- Pump applications
- Automotive and industrial equipment
- Precision mechanical systems
This bearing represents an ideal balance of quality, performance, and value for applications demanding reliable handling of combined loading conditions in standard industrial environments.
