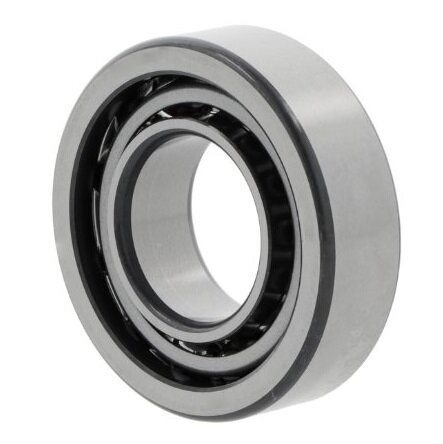

MJT3.1/2 NKE Single Row Angular Contact Ball Bearing 88.9mm x 206.37mm x 44.45mm
MJT3.1/2 NKE Single Row Angular Contact Ball Bearing
A robust single row angular contact ball bearing from NKE, specifically engineered for industrial applications demanding reliable performance with combined radial and axial loads. This bearing features a generous bore diameter of 88.9mm (3½ inches) and is ideal for heavy-duty machinery where precision and durability are essential.
Technical Specifications:
- Bore Diameter: 88.9mm (3½ inches)
- Outer Diameter: 206.37mm (8 11/16 inches)
- Width: 44.45mm (1¾ inches)
- Contact Angle: 35°
- Row Type: Single row
- Arrangement: Standard version
- Seal Type: Open bearing (none)
- Cage Material: Sheet steel cage
- Radial Clearance: Normal
- Tolerance Class: P0/PN2 (ABEC 1)
- Operating Temperature Range: -20°C to +150°C
- Material: Standard bearing steel
- Outer Ring: Without flange/groove
Applications:
This bearing is well-suited for heavy-duty industrial equipment including:
- Large gearboxes and transmission systems
- Industrial electric motors
- Heavy machinery and rotating equipment
- Machine tool spindles
- Automotive and industrial applications requiring large bore sizes
- Equipment requiring simultaneous radial and axial load capacity with extended operating temperatures
Performance Characteristics:
The 35-degree contact angle provides optimal load distribution for combined radial and axial forces, while the sheet steel cage ensures stable and reliable performance under demanding conditions. The open design allows for effective external lubrication and cooling, making it versatile for various industrial machinery applications. The extended operating temperature range of -20°C to +150°C makes this bearing suitable for both climate-controlled and varied industrial environments.
Quality Assurance:
Manufactured to strict NKE standards with tolerance class P0/PN2 certification, ensuring consistent precision and reliability. Available for immediate dispatch.
