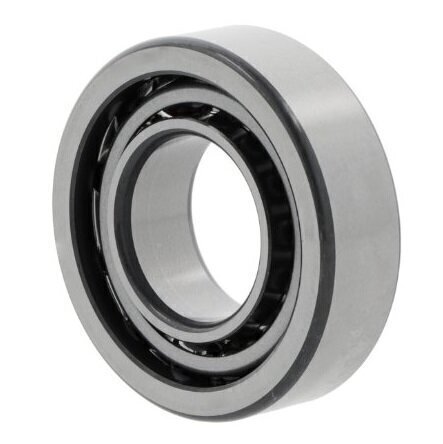

MJT1.1/8 NKE Single Row Angular Contact Ball Bearing 28.57mm x 71.43mm x 20.63mm
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
SPBX Belts (16.3mm x 13mm)
Buy Now
Product Specification
Arrangement
Standard version
Brand
NKE
Cage
Sheet steel cage
Clearance
Normal radial clearance
Contact angle
35 degree
Inside Dia
28.58mm = 1.1/8inch
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
71.44mm = 2.13/16inch
Row Type
Single
Seal
None, open bearing
Temperature range
-20 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
20.64mm = 13/16inch
Reference
MJT1.1/8
Additional Reference:
10173290
Quick Order Code
BB-529783
Product Description
MJT1.1/8 NKE Single Row Angular Contact Ball Bearing
This premium single row angular contact ball bearing from NKE is engineered to handle simultaneous radial and axial loads with exceptional precision and reliability. The MJT1.1/8 is ideal for high-speed applications requiring robust performance in demanding industrial environments, with a 35° contact angle optimised for efficient load distribution.
Key Specifications:
- Bore Diameter: 28.57mm (1.1/8 inch)
- Outer Diameter: 71.43mm (2.13/16 inch)
- Width: 20.63mm (13/16 inch)
- Contact Angle: 35°
- Row Type: Single Row
- Manufacturer: NKE
- Reference Number: MJT1.1/8
Design Features & Benefits:
- Optimised internal design for superior load distribution and precision handling
- Non-separable design for secure, reliable mounting
- 35° contact angle enables efficient axial and radial load capacity
- Sheet steel cage construction for lightweight durability and reduced friction
- Open bearing design (no seals) for applications requiring unrestricted rotation
- Universal mounting capability - two bearings can be arranged back-to-back or face-to-face with normal axial internal clearance before mounting
- Standard bearing steel material ensuring superior quality and longevity
- Metric and imperial dimensions available for international applications
- Normal radial clearance suitable for standard operating conditions
- Extended temperature range from -20°C to +150°C for versatile application environments
- High-quality construction manufactured to NKE's stringent standards and P0/PN2 (ABEC 1) tolerance class
Typical Applications:
- Gearboxes and transmission systems
- Electric motors and spindles
- Machine tool applications
- Heavy-duty industrial equipment
- High-speed precision machinery
- Pumps and compressors
- Automotive and mechanical drive systems
Reference Number: MJT1.1/8
