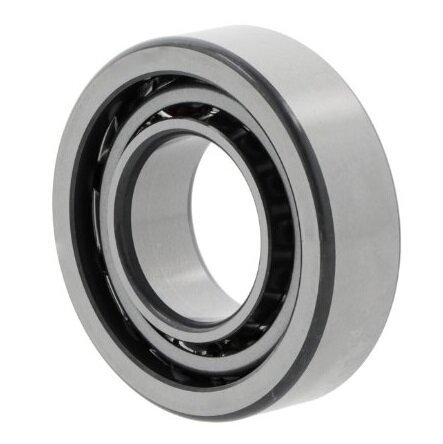

LJT3 NKE Single Row Angular Contact Ball Bearing 76.2mm x 146.05mm x 26.98mm
LJT3 NKE Single Row Angular Contact Ball Bearing
The LJT3 is a premium single row angular contact ball bearing from NKE, engineered for high-speed precision applications requiring simultaneous radial and axial load capacity. With a bore diameter of 76.2mm (3 inches) and outer diameter of 146.05mm (5¾ inches), this bearing delivers reliable performance in demanding industrial environments.
Design & Construction
This single row angular contact bearing features an optimized 35° contact angle, providing an excellent balance between radial load capacity and low friction characteristics. The open bearing design allows for flexible lubrication options suited to specific application requirements. The sheet steel cage construction ensures durability and stability during high-speed operation, while maintaining precise load distribution throughout the bearing's operating life.
Key Specifications
- Bore Diameter: 76.2mm (3 inches)
- Outer Diameter: 146.05mm (5¾ inches)
- Width: 26.98mm (1 1/16 inches)
- Bearing Type: Single Row Angular Contact
- Contact Angle: 35°
- Arrangement: Standard version
- Seal Type: Open bearing (no seal)
- Cage Material: Sheet steel
- Clearance: Normal radial clearance
- Tolerance Class: P0/PN2 (ABEC 1)
- Material: Standard bearing steel
- Operating Temperature Range: -20°C to +150°C
- Outer Ring Design: Without flange or groove
Performance Benefits
- Accommodates combined radial and axial loads simultaneously
- Optimized 35° contact angle for efficient load distribution
- Excellent stiffness for precision applications
- Sheet steel cage provides superior durability and stability
- Open bearing design allows customizable lubrication strategies
- Extended operating temperature range up to 150°C for high-temperature environments
- Suitable for high-speed operation with reliable performance
- Standard tolerance class ensures consistent quality and interchangeability
Typical Applications
This bearing is ideally suited for use in gearboxes, spindle assemblies, machine tool equipment, automotive transmissions, electric motors, industrial machinery, and other applications requiring precision rotation under combined loading conditions. The 35° contact angle and open design make it particularly well-suited for environments where customized lubrication and extended temperature performance are essential requirements.
As an NKE product, this bearing meets premium quality standards and is backed by proven manufacturing expertise. Contact us for availability or if you require alternative configurations.
