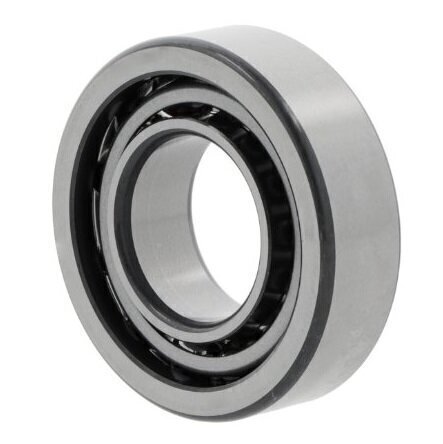

LJT1.5/8 NKE Single Row Angular Contact Ball Bearing 41.27mm x 88.9mm x 19.05mm
LJT1.5/8 NKE Single Row Angular Contact Ball Bearing
This reliable single row angular contact ball bearing from NKE is engineered for high-speed precision applications requiring combined radial and axial load handling. With a compact 41.27mm bore and 88.9mm outer diameter, this bearing delivers consistent performance across a wide range of industrial and mechanical applications.
Key Specifications:
- Dimensions: 41.27mm (bore) × 88.9mm (outer diameter) × 19.05mm (width)
- Bore Size: 1.5/8 inches
- Outer Diameter: 3.1/2 inches
- Width: 3/4 inches
- Brand: NKE
- Row Type: Single row
- Contact Angle: 35 degrees – optimized for balanced radial and axial load distribution
- Arrangement: Standard version with normal radial clearance
- Cage Material: Sheet steel cage for reliable, durable performance
- Material: Standard bearing steel construction
- Seal Type: Open bearing (no seals)
- Outer Ring: Without flange or groove
- Tolerance Class: P0/PN2 (ABEC 1)
- Operating Temperature Range: -20°C to +150°C
- Reference Number: LJT1.5/8
Ideal Applications:
- Electric motors and fan assemblies
- Gearboxes and transmission systems
- Pumps and compressors
- Machine tool spindles
- Industrial machinery requiring moderate to high-speed operation
- Rotating shaft applications with dual load support
This NKE bearing is built for reliability and consistent performance in demanding operating conditions, making it an excellent choice for OEMs and maintenance professionals seeking quality angular contact bearing solutions. The extended operating temperature range to +150°C provides enhanced versatility for warm environment applications.
