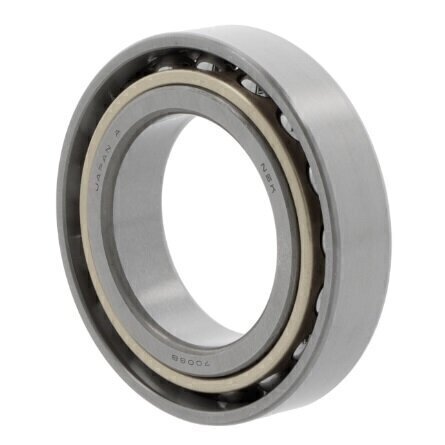

7226 BG NSK Single Row Angular Contact Ball Bearing 130mm x 230mm x 40mm
7226 BG NSK Single Row Angular Contact Ball Bearing
The 7226 BG is a premium single row angular contact ball bearing from NSK, engineered to deliver reliable performance in high-speed precision applications requiring simultaneous radial and axial loads. This bearing combines robust construction with exceptional durability, making it ideal for demanding industrial environments.
Key Features:
- 40° contact angle for optimal load distribution and performance
- Steel cage design for durability and stability
- Normal radial clearance for standard applications
- Open bearing design (no seal) for applications requiring minimal friction
- Available as bearing pairs with low axial clearance in O- and X-arrangements for flexible mounting configurations
- Wide operating temperature range from -20°C to +150°C
- Tolerance class P0/PN2 (ABEC 1) ensuring reliable precision performance
Specifications:
- Bore Diameter: 130mm
- Outside Diameter: 230mm
- Width: 40mm
- Row Type: Single Row
- Material: Standard bearing steel
- Manufacturer: NSK
- Reference: 7226BG
Applications:
The 7226 BG is suitable for heavy-duty equipment including gearboxes, electric motors, pumps, compressors, spindles, and other industrial machinery where combined radial and axial loads are present. The availability of bearing pairs with configurable arrangements (O- and X-configurations) provides excellent flexibility for precision engineering applications requiring specific preload and clearance characteristics.
NSK bearings are trusted worldwide for their consistent quality, reliability, and performance in demanding industrial applications.
