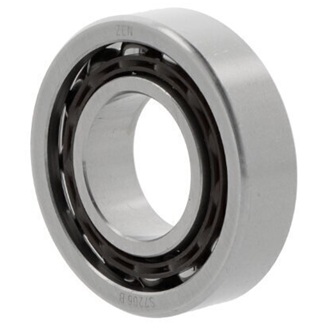

7219-BEP SKF Single Row Angular Contact Ball Bearing
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
SKF
Cage
Polyamide cage
Clearance
Normal radial clearance
Contact angle
40 degree
Inside Dia
95mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
170mm
Row Type
Single
Seal
None, open bearing
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
32mm
Reference
7219-BEP
Additional Reference:
10052184
Quick Order Code
BB-499441
Product Description
The 7219-BEP SKF Single Row Angular Contact Ball Bearing is a premium precision bearing designed for high-speed applications requiring simultaneous radial and axial load capacity. This robust bearing combines SKF's renowned engineering excellence with reliable performance across demanding industrial environments.
Key Specifications:
- Bore Diameter: 95mm
- Outer Diameter: 170mm
- Width: 32mm
- Contact Angle: 40 degrees
- Row Type: Single row configuration
- Cage Material: Polyamide cage for reduced friction and smooth operation
- Radial Clearance: Normal radial clearance
- Seal Type: Open bearing design without seals
- Tolerance Class: P0/PN2 (ABEC 1)
- Operating Temperature Range: -20°C to +120°C
- Material: Standard bearing steel
- Outer Ring: Without flange or groove
Ideal Applications:
This angular contact bearing is perfectly suited for:
- Gearboxes and transmission systems
- Electric motors and spindle drives
- Precision machine tool equipment
- Automotive and industrial machinery
- Heavy-duty equipment requiring reliable axial and radial load support
The 7219-BEP delivers consistent performance and durability, backed by SKF's reputation for quality. As an open bearing design, it is suitable for applications where external lubrication and cooling can be effectively managed.
