Quick Code: BB-495534

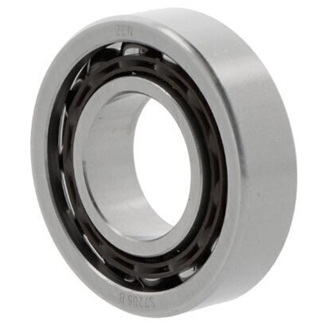

7216-BEP SKF Single Row Angular Contact Ball Bearing
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
SKF
Cage
Polyamide cage
Clearance
Normal radial clearance
Contact angle
40 degree
Inside Dia
80mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
140mm
Row Type
Single
Seal
None, open bearing
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
26mm
Reference
7216-BEP
Additional Reference:
10017281
Quick Order Code
BB-495534
Product Description
The 7216-BEP SKF Single Row Angular Contact Ball Bearing is a premium precision bearing designed for high-speed applications requiring simultaneous radial and axial load handling. This standard arrangement bearing from leading manufacturer SKF combines robust engineering with reliable performance across demanding industrial environments.
Specifications:
- Reference: 7216-BEP
- Brand: SKF
- Row Type: Single row
- Bore Diameter: 80mm
- Outside Diameter: 140mm
- Width: 26mm
- Contact Angle: 40°
- Clearance: Normal radial clearance
- Cage Material: Polyamide
- Seal Type: Open bearing (no seal)
- Material: Standard bearing steel
- Outer Ring: Without flange/groove
- Tolerance Class: P0/PN2 (ABEC 1)
- Operating Temperature Range: -20°C to +120°C
- Arrangement: Standard version
Applications:
This angular contact bearing is ideal for use in:
- High-speed rotating machinery
- Gearboxes and transmission systems
- Industrial pumps and compressors
- Machine tool spindles
- Electric motor applications
- Heavy-duty equipment requiring precision performance
The 40° contact angle provides excellent support for both radial and axial loads, making this bearing a versatile choice for precision applications. The polyamide cage ensures reliable operation while maintaining efficiency across the specified temperature range.
