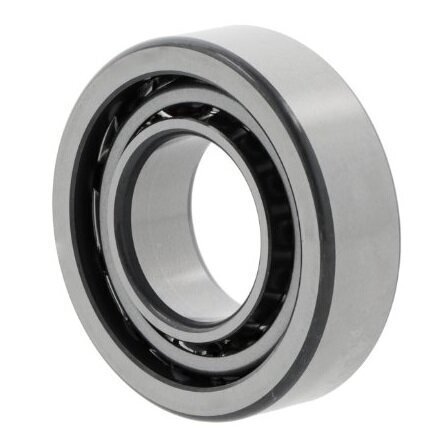

7212 BW NSK Single Row Angular Contact Ball Bearing 60mm x 110mm x 22mm
7212 BW NSK Single Row Angular Contact Ball Bearing
This reliable angular contact ball bearing from NSK is engineered for precision applications requiring combined radial and axial load capacity. With a compact bore size of 60mm and outer diameter of 110mm, this bearing delivers consistent performance in a wide range of industrial and mechanical applications.
Key Specifications:
- Bore Diameter: 60mm
- Outer Diameter: 110mm
- Width: 22mm
- Contact Angle: 40°
- Row Type: Single row
- Arrangement: Standard version
- Clearance: Normal radial clearance
- Tolerance Class: P0/PN2 (ABEC 1)
- Material: Standard bearing steel
- Cage: Steel cage for reliable operation
- Seal Type: Open bearing (none)
- Operating Temperature Range: -20°C to +150°C
- Outer Ring Design: Without flange or groove
Applications:
This bearing is ideally suited for use in pumps, compressors, electric motors, gearboxes, and general industrial machinery. The 40° contact angle provides excellent axial load capacity while maintaining low friction characteristics for reliable high-speed operation. It is particularly well-suited for applications requiring stable performance under combined loading conditions.
As an NSK product, this bearing meets premium quality standards and is backed by proven manufacturing expertise. Contact us for availability or if you require alternative sizes or configurations.
