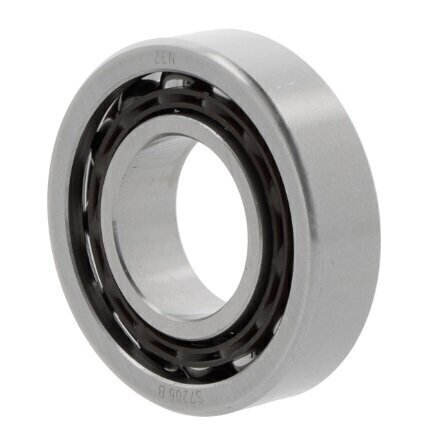

7210-BE-TVP NKE Single Row Angular Contact Ball Bearing 50mm x 90mm x 20mm
The 7210-BE-TVP NKE Single Row Angular Contact Ball Bearing is a precision-engineered bearing designed to handle simultaneous radial and axial loads in one direction. With compact dimensions of 50mm bore × 90mm outer diameter × 20mm width, this bearing combines reliable performance with space efficiency, making it an excellent choice for high-speed industrial applications.
NKE brings decades of bearing manufacturing expertise to deliver consistent quality and dependable operation across demanding applications. This single row angular contact bearing exemplifies NKE's commitment to precision engineering and reliability.
Key Features:
- 40° contact angle for optimal load distribution and stability
- Single row design for unidirectional axial load accommodation
- Polyamide cage construction for lightweight, corrosion-resistant performance
- Normal radial clearance for standard mounting applications
- Open bearing design (non-sealed) for easy maintenance and inspection
- Standard bearing steel material for reliable, proven durability
- Non-separable design for secure operation
- Compact form factor ideal for space-constrained installations
Technical Specifications:
- Bore Diameter: 50mm
- Outer Diameter: 90mm
- Width: 20mm
- Manufacturer: NKE
- Reference: 7210-BE-TVP
- Row Type: Single row
- Contact Angle: 40°
- Cage Type: Polyamide
- Clearance: Normal radial clearance
- Tolerance Class: P0/PN2 (ABEC 1)
- Operating Temperature Range: -20°C to +120°C
- Material: Standard bearing steel
- Arrangement: Standard version
- Outer Ring: Without flange/groove
- Seal Type: None (open bearing)
Typical Applications:
The 7210-BE-TVP is well-suited for use in gearboxes, electric motors, pumps, compressors, machine tools, and other industrial equipment where simultaneous radial and axial loading is required. Its single row configuration, standard clearance, and compact dimensions make it an ideal choice for high-speed precision applications demanding reliable performance and consistent durability in heavy-duty environments.
Quality Assurance:
Manufactured to strict NKE standards with tolerance class P0/PN2, ensuring consistent performance and reliability. Available for immediate dispatch.
