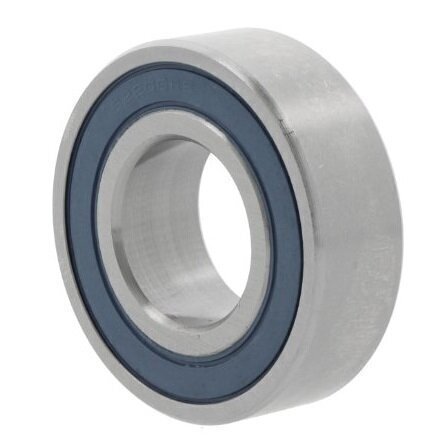

7208-BE-TVP-2RSR NKE Single Row Angular Contact Ball Bearing 40mm x 80mm x 18mm
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
NKE
Cage
Polyamide cage
Clearance
Normal radial clearance
Contact angle
40 degree
Inside Dia
40mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
80mm
Row Type
Single
Seal
Lip seal on both sides
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
18mm
Reference
7208-BE-TVP-2RSR
Additional Reference:
10173535
Quick Order Code
BB-529837
Product Description
7208-BE-TVP-2RSR NKE Single Row Angular Contact Ball Bearing
The 7208-BE-TVP-2RSR is a premium single row angular contact ball bearing from NKE, engineered to deliver reliable performance in high-speed applications requiring simultaneous radial and axial load capacity. This versatile bearing combines precision engineering with robust construction, making it an excellent choice for demanding industrial and commercial equipment.
Product Specifications
- Bore Diameter: 40mm
- Outer Diameter: 80mm
- Width: 18mm
- Row Configuration: Single Row
- Contact Angle: 40°
- Cage Type: Polyamide cage
- Seal Type: Lip seal on both sides
- Clearance: Normal radial clearance
- Material: Standard bearing steel
- Outer Ring: Without flange or groove
- Tolerance Class: P0/PN2 / ABEC 1
- Operating Temperature Range: -20°C to +120°C
- Manufacturer: NKE
- Reference Number: 7208-BE-TVP-2RSR
Design & Features
- Single row configuration optimised for combined radial and axial load handling
- 40° contact angle provides balanced load distribution for efficient performance
- Polyamide cage ensures stable operation at high speeds with reduced friction
- Double-sided lip seals offer effective protection against contamination and moisture ingress
- Normal radial clearance suitable for standard mounting applications
- Precision engineering with P0/PN2 tolerance class for reliable, accurate performance
- Wide operating temperature range from -20°C to +120°C for versatile deployment
- Compact 18mm width ideal for space-constrained applications
Typical Applications
Ideal for use in:
- Electric motors and high-speed spindle drives
- Gearboxes and transmission systems
- Machine tool spindles and precision rotating equipment
- Industrial pumps and compressor assemblies
- Automotive drivetrain applications
- General industrial machinery requiring combined load support
- Applications operating in moderate temperature environments
NKE Quality Assurance: NKE is recognised for manufacturing high-quality precision bearings with exceptional reliability standards, making this angular contact bearing a dependable choice for demanding industrial applications where performance and durability are essential.
