Quick Code: BB-516849

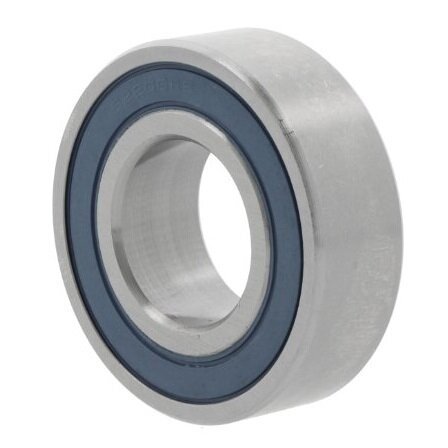

7204-B-2RS Zen Single Row Angular Contact Ball Bearing 20mm x 47mm x 14mm
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
Zen
Cage
Polyamide cage
Clearance
Normal radial clearance
Contact angle
40 degree
Inside Dia
20mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
47mm
Row Type
Single
Seal
Lip seal on both sides
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
14mm
Reference
7204-B-2RS
Additional Reference:
10126617
Quick Order Code
BB-516849
Product Description
The 7204-B-2RS Zen Single Row Angular Contact Ball Bearing is a reliable precision bearing designed to manage combined radial and axial loads, making it an excellent choice for high-speed applications across various industrial sectors. Built with quality engineering standards, this bearing delivers consistent performance in demanding operational environments.
Key Specifications
- Bore Diameter: 20mm
- Outer Diameter: 47mm
- Width: 14mm
- Type: Single Row Angular Contact Ball Bearing
- Contact Angle: 40°
- Brand: Zen
Technical Features
- Single row construction for efficient radial and axial load handling
- Dual lip seals (2RS) on both sides for enhanced protection against dust and contamination
- Polyamide cage design for smooth operation and reduced friction
- Standard bearing steel construction for durability and reliability
- Normal radial clearance for versatile mounting applications
- Outer ring without flange or groove for standard installation
- Tolerance class P0/PN2 (ABEC 1) for precision performance
Performance Specifications
- Temperature Range: -20°C to +120°C
- Arrangement: Standard version
- Material: Standard bearing steel
Ideal Applications
Perfect for electric motors, pumps, gearboxes, machine tools, automotive components, and general industrial equipment where reliable performance under combined loading conditions is essential. The sealed design makes this bearing particularly suitable for environments where protection from dust and debris is important.
Reference: 7204-B-2RS Zen
