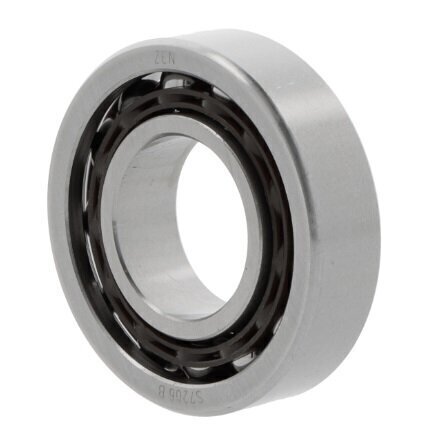

7203-BE-TVP NKE Single Row Angular Contact Ball Bearing 17mm x 40mm x 12mm
7203-BE-TVP NKE Single Row Angular Contact Ball Bearing
This precision NKE single row angular contact ball bearing is engineered to handle simultaneous radial and axial loads, making it an excellent choice for high-speed precision applications. As a product from NKE, a respected bearing manufacturer, this compact bearing delivers reliable performance for demanding industrial and mechanical environments.
Key Features:
- 40° contact angle for optimal load distribution and performance
- Polyamide cage design for smooth, reliable operation
- Standard version with normal radial clearance
- Non-separable single row design
- Open bearing design (unsealed) for applications where lubrication control is critical
- Standard bearing steel construction for durability and longevity
Specifications:
- Bore Diameter: 17mm
- Outer Diameter: 40mm
- Width: 12mm
- Bearing Type: Single Row Angular Contact
- Manufacturer: NKE
- Reference: 7203-BE-TVP
- Contact Angle: 40°
- Tolerance Class: P0/PN2 (ABEC 1)
- Operating Temperature Range: -20°C to +120°C
- Seal Type: Open bearing (unsealed)
- Outer Ring: Without flange or groove
- Cage Material: Polyamide
Applications:
These versatile compact bearings are ideal for electric motors, small pumps, machine tool spindles, gearboxes, and precision equipment requiring reliable performance under combined radial and axial loading conditions. The compact 17mm bore makes this bearing particularly suitable for light to medium-duty applications in confined spaces.
In stock for immediate dispatch. Contact us if you require alternative sizes or specifications.
