Bearings
Angular Contact Bearings
Angular Contact Bearings
Quick Code: BB-495488

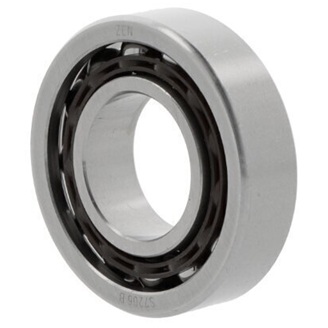

7202-BEP SKF Single Row Angular Contact Ball Bearing
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
SKF
Cage
Polyamide cage
Clearance
Normal radial clearance
Contact angle
40 degree
Inside Dia
15mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
35mm
Row Type
Single
Seal
None, open bearing
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
11mm
Reference
7202-BEP
Additional Reference:
10017106
Quick Order Code
BB-495488
Product Description
7202-BEP SKF Single Row Angular Contact Ball Bearing
This precision SKF angular contact ball bearing is engineered to accommodate simultaneous radial and axial loads, making it an excellent choice for high-speed applications requiring reliable performance. The single row design with polyamide cage offers a cost-effective solution for general industrial and machinery applications.
Key Specifications:
- Bore Diameter: 15mm
- Outside Diameter: 35mm
- Width: 11mm
- Contact Angle: 40°
- Cage Type: Polyamide cage
- Seal Type: Open bearing (unsealed)
- Clearance: Normal radial clearance
- Tolerance Class: P0/PN2 (ABEC 1)
Product Features:
- 40° contact angle for effective combined load distribution
- Standard arrangement polyamide cage design for smooth operation
- Lightweight construction suitable for high-speed applications
- Open bearing design allowing for easy cleaning and maintenance
- Manufactured from standard bearing steel to SKF quality standards
- Operating temperature range: -20°C to +120°C
- Universal mounting capability - two bearings can be arranged back-to-back or face-to-face
Applications:
Ideal for use in electric motors, pumps, compressors, spindles, machine tool applications, and other precision machinery where combined radial and axial loads are present. Suitable for both industrial and commercial equipment requiring reliable bearing performance.
Reference Number: 7202-BEP SKF
