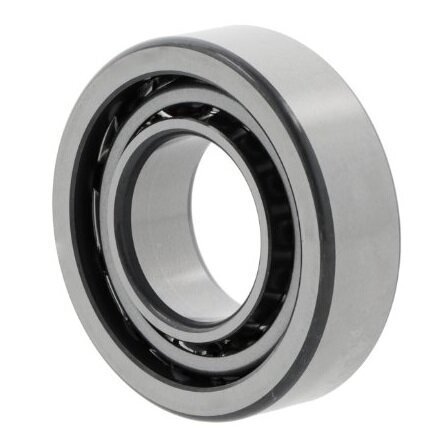

7201-B-XL-JP-UO FAG Single Row Angular Contact Ball Bearing 12mm x 32mm x 10mm
7201-B-XL-JP-UO FAG Single Row Angular Contact Ball Bearing
This compact single row angular contact ball bearing from FAG is engineered for high-speed precision applications requiring simultaneous radial and axial load handling. The 7201-B-XL-JP-UO represents FAG's commitment to quality and reliability, featuring advanced engineering suitable for demanding industrial and mechanical applications where precision and durability are paramount. Its compact 12mm x 32mm x 10mm dimensions make it ideal for space-constrained applications.
Key Features:
- Single row angular contact design for optimal speed and load capacity in compact form
- 40° contact angle for superior load distribution and enhanced performance in combined loading conditions
- Open bearing design (unsealed) allowing for free-flowing lubrication and optimal performance in high-speed applications
- Sheet steel cage ensuring reliable operation with consistent performance
- Standard bearing steel construction delivering exceptional durability and reliability
- Normal radial clearance suitable for general industrial applications
- Clearance-free arrangement in both O- and X-configuration for versatile paired mounting options
- Wide operating temperature range from -20°C to +150°C for use in varied environments
- FAG quality assurance backed by decades of precision bearing manufacturing expertise
Specifications:
- Reference Number: 7201-B-XL-JP-UO
- Brand: FAG
- Bore Diameter: 12mm
- Outside Diameter: 32mm
- Width: 10mm
- Row Type: Single Row
- Seal Type: Open Bearing (None)
- Contact Angle: 40°
- Cage Material: Sheet Steel
- Outer Ring: Without flange/groove
- Clearance: Normal radial clearance
- Tolerance Class: P0/PN2 (ABEC 1)
- Operating Temperature Range: -20°C to +150°C
- Arrangement: Clearance-free in O- and X-arrangement
Applications:
The 7201-B-XL-JP-UO is ideal for compact high-speed machinery and precision equipment including electric motors, small machine tool spindles, gearboxes, pumps, fans, and precision instrumentation. The open design makes it particularly suitable for applications with continuous lubrication systems where unrestricted oil flow is essential. The clearance-free O- and X-arrangement capability makes this bearing versatile for paired bearing configurations in demanding precision applications. Perfect for industrial equipment requiring reliable performance under combined radial and axial loading conditions in high-speed operating environments, particularly where space limitations are a critical design consideration.
