Bearings
Angular Contact Bearings
Angular Contact Bearings
Quick Code: BB-503155

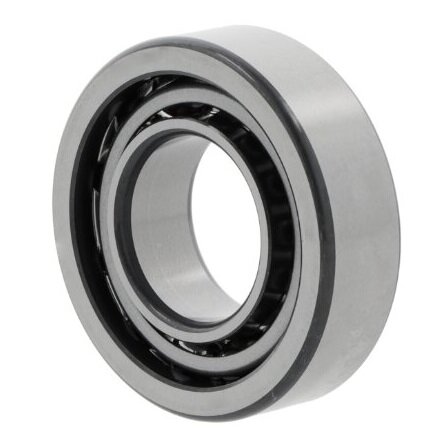

7200-B-XL-JP-UO FAG Single Row Angular Contact Ball Bearing 10mm x 30mm x 9mm
7200-B-XL-JP-UO FAG Single Row Angular Contact Ball Bearing
This compact FAG angular contact ball bearing is engineered to handle combined radial and axial loads simultaneously, making it ideal for high-speed, precision applications in confined spaces. As a single row design, it accommodates axial loads in one direction and features a non-separable construction with excellent performance characteristics.
Key Features:
- 40° contact angle for optimal load distribution and enhanced performance
- Clearance-free bearing pair configuration in both O- and X-arrangement options
- Sheet steel cage for reliable operation and reduced friction
- Normal radial clearance with standard bearing steel construction
- Open bearing design without flange or groove on outer ring
- Compact 10mm bore size ideal for precision miniature and small-scale equipment
- Manufactured by FAG, a globally recognised leader in bearing technology and quality
Specifications:
- Bore Diameter: 10mm
- Outer Diameter: 30mm
- Width: 9mm
- Bearing Type: Single Row Angular Contact Ball Bearing
- Contact Angle: 40°
- Seal Type: None (Open bearing)
- Cage Type: Sheet steel
- Tolerance Class: P0/PN2 (ABEC 1)
- Operating Temperature Range: -20°C to +150°C
Applications:
Ideal for miniature electric motors, dental drills, precision spindles, small pumps, and other compact high-speed equipment where simultaneous radial and axial loads are present. Perfect for applications requiring precision performance in restricted spaces. The clearance-free arrangement makes this bearing particularly suitable for miniature applications requiring minimal play and enhanced load carrying capacity. The extended temperature range of -20°C to +150°C provides excellent performance across varied operating environments.
