Quick Code: BB-495485

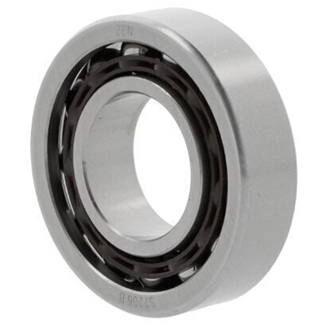

7200-BEP SKF Single Row Angular Contact Ball Bearing
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Metric
Buy Now
Product Specification
Arrangement
Standard version
Brand
SKF
Cage
Polyamide cage
Clearance
Normal radial clearance
Contact angle
40 degree
Inside Dia
10mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
30mm
Row Type
Single
Seal
None, open bearing
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
9mm
Reference
7200-BEP
Additional Reference:
10017092
Quick Order Code
BB-495485
Product Description
7200-BEP SKF Single Row Angular Contact Ball Bearing
This reliable single row angular contact ball bearing from SKF is engineered to handle combined radial and axial loads, making it an excellent choice for precision applications requiring dependable performance. The open design and standard configuration make it versatile for various industrial and mechanical applications.
Product Specifications
- Bore Diameter: 10mm
- Outer Diameter: 30mm
- Width: 9mm
- Row Configuration: Single Row
- Contact Angle: 40°
- Manufacturer: SKF
- Reference Number: 7200-BEP
Design & Features
- Standard version angular contact design for balanced radial and axial load handling
- Polyamide cage provides effective ball centring and stable operation
- Open bearing design without seals for straightforward maintenance and accessibility
- Normal radial clearance suitable for most standard applications
- Non-separable design ensuring structural integrity
- Tolerance class P0/PN2 (ABEC 1) for reliable precision performance
- Outer ring without flange or groove for flexible mounting options
Material & Operating Conditions
- Material: Standard bearing steel
- Operating Temperature Range: -20°C to +120°C
- Arrangement: Standard version
Typical Applications
Ideal for use in:
- Small to medium-sized electric motors
- Precision rotating equipment
- Industrial machinery and mechanical assemblies
- Gearboxes and transmission systems
- Machine tools requiring combined load support
- General industrial applications with moderate speed and load requirements
SKF Quality Assurance: As the world's leading bearing manufacturer, SKF delivers exceptional quality standards and reliability, ensuring this angular contact bearing performs consistently in demanding industrial environments.
