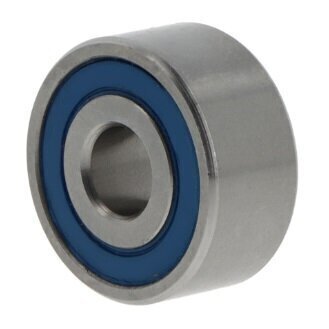

5207-2NSC3 Nachi Double Row Angular Contact Ball Bearing 35mm x 72mm x 27mm
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
Nachi
Cage
Sheet steel cage
Clearance
Slightly increased radial clearance
Contact angle
30 degree
Inside Dia
35mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
72mm
Row Type
Double
Seal
Lip seal on both sides
Temperature range
-20 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
27mm
Reference
5207-2NSC3
Additional Reference:
10163747
Quick Order Code
BB-528124
Product Description
5207-2NSC3 Nachi Double Row Angular Contact Ball Bearing
The 5207-2NSC3 is a premium double row angular contact ball bearing from Nachi, engineered to deliver exceptional performance in demanding industrial applications. This precision bearing is specifically designed to handle combined radial and axial loads simultaneously, making it an ideal solution for high-speed machinery and equipment requiring reliable, consistent operation.
Product Specifications:
- Bore Diameter: 35mm
- Outer Diameter: 72mm
- Width: 27mm
- Double Row Configuration
- Contact Angle: 30°
- Manufacturer: Nachi
- Reference: 5207-2NSC3
Key Features:
- Double Row Design - Provides enhanced load-carrying capacity and superior rigidity compared to single row bearings, enabling reliable performance under heavy loads
- Dual Lip Seals - Lip seal protection on both sides offers excellent contamination resistance and extended bearing life in varied operating environments
- 30° Contact Angle - Optimised for balanced radial and axial load distribution, ensuring smooth operation and consistent performance
- Slightly Increased Radial Clearance - Allows for optimal thermal expansion and accommodates varying installation conditions
- Sheet Steel Cage - Durable cage design ensures reliable ball spacing and centring during operation
- Wide Temperature Range - Operates efficiently from -20°C to +150°C, making it suitable for diverse industrial environments
- Precision Tolerance Class P0/PN2 (ABEC 1) - Delivers consistent, precision performance with minimal vibration and noise
- Standard Bearing Steel Construction - Premium material selection ensures durability and reliability in demanding applications
Typical Applications:
- Gearboxes and transmission systems
- Electric motors and pumps
- Automotive assemblies and equipment
- Heavy-duty industrial machinery
- Machine tool spindles and precision equipment
- Compressors and rotating equipment
- General mechanical assemblies requiring combined load handling
