3322-A SKF Double Row Angular Contact Ball Bearing

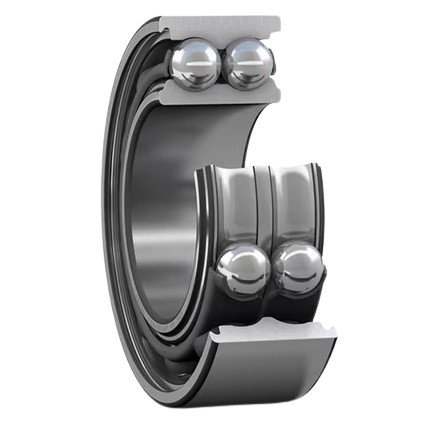

SKF 3322-A Double Row Angular Contact Ball Bearing
This premium double row angular contact ball bearing from SKF is engineered to deliver exceptional performance in demanding applications requiring simultaneous radial and axial load capacity in both directions. With its robust construction and precision engineering, the 3322-A is ideal for heavy-duty industrial equipment operating at high speeds.
Product Specifications:
- Bore Diameter: 110mm
- Outer Diameter: 240mm
- Width: 92.1mm
- Configuration: Double Row Angular Contact
- Contact Angle: 30°
- Cage Material: Sheet Steel
- Seal Type: Open Bearing (Unsealed)
- Radial Clearance: Normal
- Material: Standard Bearing Steel
- Outer Ring: Without Flange/Groove
- Tolerance Class: P0/PN2 (ABEC 1)
- Temperature Range: -20°C to +200°C
- Manufacturer: SKF
Key Features & Benefits:
- Double row design accommodates radial and axial loads in both directions
- 30° contact angle provides optimal load distribution and performance
- Rigid bearing arrangement capable of handling tilting moments
- Sheet steel cage ensures durability and reliable operation
- Open design allows for lubrication management in custom applications
- Wide temperature operating range suitable for diverse industrial environments
- SKF precision engineering and quality standards
Applications:
This bearing is particularly suited for heavy-duty industrial machinery, gearboxes, compressors, large-scale pumps, spindles, and other precision equipment where high radial and axial load capacity, stiff arrangements, and multi-directional load handling are essential. The larger bore diameter and substantial width make it ideal for applications requiring enhanced load-carrying capability and reliability in demanding operational environments.
Reference Number: 3322A
