Quick Code: BB-503431

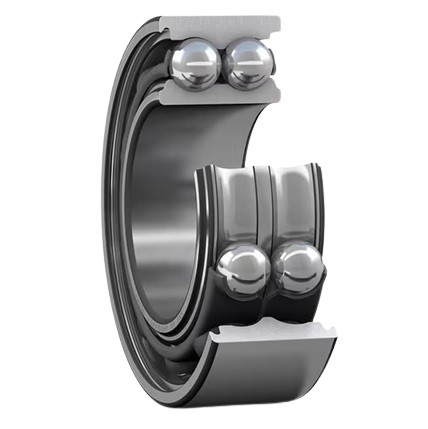

3319-A SKF Double Row Angular Contact Ball Bearing
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
SKF
Cage
Sheet steel cage
Clearance
Normal radial clearance
Contact angle
30 degree
Inside Dia
95mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
200mm
Row Type
Double
Seal
None, open bearing
Temperature range
-20 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
77.8mm
Reference
3319A
Additional Reference:
10072600
Quick Order Code
BB-503431
Product Description
SKF 3319-A Double Row Angular Contact Ball Bearing
This premium double row angular contact ball bearing from SKF is engineered for high-speed precision applications requiring simultaneous radial and axial load capacity in both directions. With a 95mm bore diameter and 200mm outer diameter, this bearing delivers exceptional performance and reliability in demanding industrial environments.
Product Specifications:
- Bore Diameter: 95mm
- Outer Diameter: 200mm
- Width: 77.8mm
- Configuration: Double Row Angular Contact
- Contact Angle: 30°
- Seal Type: Open Bearing (None)
- Cage Material: Sheet Steel Cage
- Tolerance Class: P0/PN2 (ABEC 1)
- Radial Clearance: Normal
- Material: Standard Bearing Steel
- Operating Temperature Range: -20°C to +150°C
- Outer Ring: Without flange/groove
- Arrangement: Standard Version
- Manufacturer: SKF
Key Features:
- Double row design accommodates radial and axial loads in both directions
- 30° contact angle for optimized internal load distribution and enhanced load capacity
- Rigid bearing arrangement capable of handling tilting moments
- Sheet steel cage ensures reliable ball guidance and stability during operation
- Open bearing design for applications requiring minimal friction and maintenance flexibility
- Robust construction delivers reliable performance across wide temperature range
- SKF manufacturing quality and precision engineering standards
Applications:
This bearing is particularly suited for heavy-duty industrial applications such as:
- Large gearboxes and transmission systems
- Industrial machinery and rotating equipment
- Heavy-duty spindles and shaft assemblies
- Machine tool applications requiring multi-directional load handling
- Equipment operating across extended temperature ranges
As a leading bearing manufacturer, SKF angular contact bearings are renowned for exceptional quality and reliability, making this double row bearing an excellent choice for demanding operational environments requiring simultaneous radial and axial load capacity.
