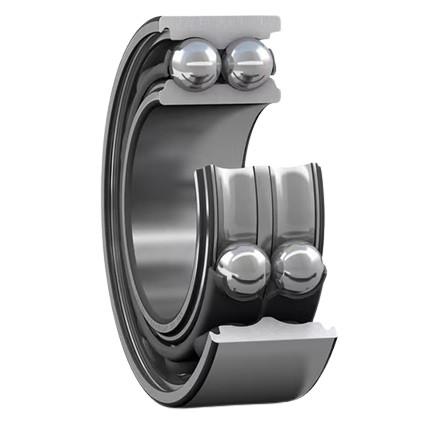

3316-A SKF Double Row Angular Contact Ball Bearing
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Sealey Castor Wheels
Cone Only
Buy Now
Product Specification
Arrangement
Standard version
Brand
SKF
Cage
Sheet steel cage
Clearance
Normal radial clearance
Contact angle
30 degree
Inside Dia
80mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
170mm
Row Type
Double
Seal
None, open bearing
Temperature range
-20 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
68.3mm
Reference
3316A
Additional Reference:
10073589
Quick Order Code
BB-503692
Product Description
3316-A SKF Double Row Angular Contact Ball Bearing
The 3316-A is a premium double row angular contact ball bearing from SKF, engineered for high-speed precision applications requiring simultaneous radial and axial load capacity. This robust bearing is ideal for demanding industrial equipment including gearboxes, machine tool spindles, and heavy-duty transmission systems.
Specifications:
- Bore Diameter: 80mm
- Outside Diameter: 170mm
- Width: 68.3mm
- Row Type: Double row configuration
- Contact Angle: 30 degrees
- Radial Clearance: Normal
- Seal Type: Open bearing (unsealed)
- Cage Material: Sheet steel
- Bearing Material: Standard bearing steel
- Outer Ring: Without flange or groove
- Tolerance Class: P0/PN2 (ABEC 1)
- Operating Temperature Range: -20°C to +150°C
- Arrangement: Standard version
Key Benefits:
- Dual-row design provides exceptional radial and axial load carrying capacity
- 30-degree contact angle optimizes performance under combined loads
- SKF quality assurance ensures precision manufacturing and reliability
- Sheet steel cage provides durability and stability at high speeds
- Wide temperature operating range suitable for varied industrial environments
- Open design allows for custom sealing solutions based on application requirements
This bearing is supplied in standard arrangement and is perfect for OEM equipment manufacturers and maintenance professionals seeking premium double-row angular contact bearing solutions.
