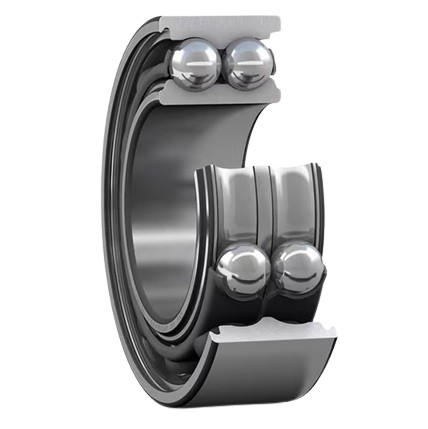

3314-A SKF Double Row Angular Contact Ball Bearing
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
BSW - British Standard Whitworth Circular Split Dies (BS 84)
MTD Mower Belts
Buy Now
Product Specification
Arrangement
Standard version
Brand
SKF
Cage
Sheet steel cage
Clearance
Normal radial clearance
Contact angle
30 degree
Inside Dia
70mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
150mm
Row Type
Double
Seal
None, open bearing
Temperature range
-20 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
63.5mm
Reference
3314A
Additional Reference:
10078786
Quick Order Code
BB-504923
Product Description
3314-A SKF Double Row Angular Contact Ball Bearing
The 3314-A is a premium double row angular contact ball bearing from SKF, engineered to deliver exceptional performance in high-speed applications requiring simultaneous radial and axial load capacity. This precision bearing combines robust construction with reliable operation, making it an ideal choice for demanding industrial equipment and machinery.
Bearing Specifications:
- Bore Diameter: 70mm
- Outer Diameter: 150mm
- Width: 63.5mm
- Bearing Type: Double Row Angular Contact
- Contact Angle: 30°
- Arrangement: Standard version
- Seal Type: Open Design (None)
- Reference Number: 3314A
Key Characteristics:
- Double row configuration for enhanced load carrying capacity in both axial directions
- Designed to accommodate combined radial and axial loads acting simultaneously
- 30° contact angle optimised for balanced load distribution and smooth operation
- Sheet steel cage construction for reliable performance and durability
- Normal radial clearance for standard industrial applications
- Standard bearing steel material manufactured to SKF's renowned quality standards
- Open bearing design without flange or groove
- Operating temperature range: -20°C to +150°C
- Tolerance class P0/PN2 (ABEC 1) for precision engineering
Typical Applications:
- Gearboxes and transmission systems
- Electric motors and high-speed spindles
- Machine tool equipment and industrial spindles
- Automotive transmissions
- Precision rotating machinery
- Heavy-duty industrial equipment
- Applications requiring bidirectional axial load capacity
The 3314-A represents an excellent choice for industrial applications demanding superior reliability and performance. Most items are in stock for immediate dispatch.
