Quick Code: BB-502840

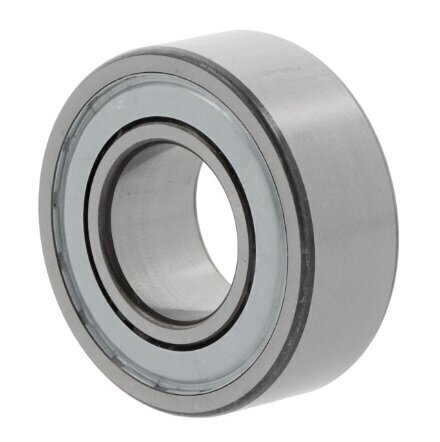

3312-B-2Z-TV NKE Double Row Angular Contact Ball Bearing 60mm x 130mm x 54mm
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
NKE
Cage
Polyamide cage
Clearance
Normal radial clearance
Contact angle
32 degree
Inside Dia
60mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
130mm
Row Type
Double
Seal
Cover on both sides
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
54mm
Reference
3312-B-2Z-TV
Additional Reference:
10070219
Quick Order Code
BB-502840
Product Description
3312-B-2Z-TV NKE Double Row Angular Contact Ball Bearing
This premium NKE double row angular contact ball bearing is engineered for high-speed precision applications requiring simultaneous radial and axial load handling. The 3312-B-2Z-TV features robust construction with protective covers on both sides, making it ideal for machinery, gearboxes, spindles, and other demanding industrial equipment where contamination protection is essential.
Key Specifications:
- Bore Diameter: 60mm
- Outside Diameter: 130mm
- Width: 54mm
- Arrangement: Double row standard version
- Contact Angle: 32 degrees for optimal load distribution
- Radial Clearance: Normal
- Tolerance Class: P0/PN2 / ABEC 1
Construction Features:
- Material: Standard bearing steel for durability and reliability
- Cage: Polyamide cage for lightweight, efficient performance
- Seal: Metal covers on both sides for protection against dust and contamination
- Outer Ring: Without flange or groove for flexible installation options
- Operating Temperature Range: -20°C to +120°C
Typical Applications:
This bearing is suitable for machine tools, electric motors, pumps, compressors, heavy-duty gearboxes, and precision equipment requiring reliable high-speed performance with enhanced protection against environmental contaminants.
