Quick Code: BB-500139

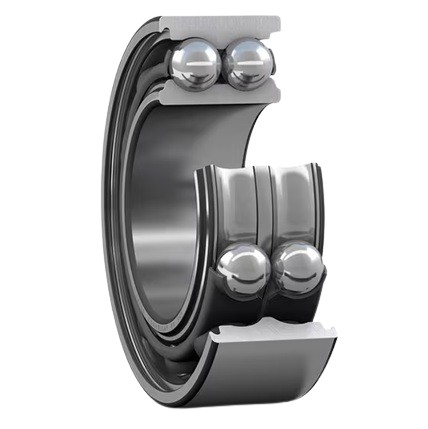

3312-A SKF Double Row Angular Contact Ball Bearing
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
SKF
Cage
Sheet steel cage
Clearance
Normal radial clearance
Contact angle
30 degree
Inside Dia
60mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
130mm
Row Type
Double
Seal
None, open bearing
Temperature range
-20 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
54mm
Reference
3312A
Additional Reference:
10057577
Quick Order Code
BB-500139
Product Description
The 3312-A SKF Double Row Angular Contact Ball Bearing is a premium precision bearing designed for demanding applications requiring simultaneous radial and axial load capacity. This robust double row configuration delivers superior performance in high-speed operations.
Key Specifications:
- Bore Diameter: 60mm
- Outer Diameter: 130mm
- Width: 54mm
- Row Type: Double row
- Contact Angle: 30 degrees
- Clearance: Normal radial clearance
- Tolerance Class: P0/PN2 (ABEC 1)
Construction Details:
- Manufacturer: SKF
- Cage Material: Sheet steel cage
- Bearing Material: Standard bearing steel
- Outer Ring: Without flange/groove
- Seal Type: Open bearing (none)
- Arrangement: Standard version
Performance Characteristics:
- Operating Temperature Range: -20°C to +150°C
- Suitable for high-speed precision applications
- Capable of handling combined radial and axial loads
Typical Applications:
This double row angular contact bearing is ideal for gearboxes, machine tool spindles, automotive transmissions, industrial pumps, and other heavy-duty equipment requiring precise load distribution and reliable performance under demanding conditions.
