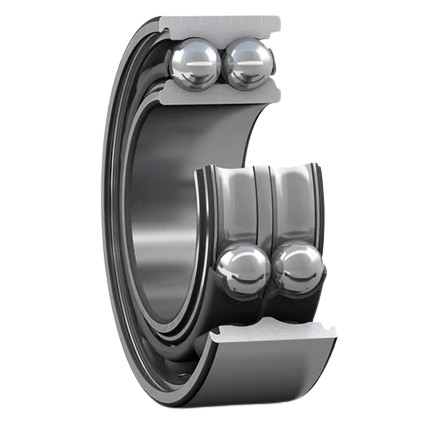

3310-A SKF Double Row Angular Contact Ball Bearing
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Budget Imperial Taper Roller Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
SKF
Cage
Sheet steel cage
Clearance
Normal radial clearance
Contact angle
30 degree
Inside Dia
50mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
110mm
Row Type
Double
Seal
None, open bearing
Temperature range
-20 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
44.4mm
Reference
3310A
Additional Reference:
10057576
Quick Order Code
BB-500138
Product Description
3310-A SKF Double Row Angular Contact Ball Bearing
The 3310-A is a premium double row angular contact ball bearing from SKF, engineered to handle combined radial and axial loads simultaneously. This precision bearing is ideal for high-speed applications and demanding industrial environments requiring reliable, long-term performance.
Bearing Specifications:
- Bore Diameter: 50mm
- Outer Diameter: 110mm
- Width: 44.4mm
- Bearing Type: Double Row Angular Contact
- Contact Angle: 30°
- Seal Type: Open Design
- Reference Number: 3310A
Key Characteristics:
- Double row configuration provides enhanced load capacity and superior stability compared to single row designs
- 30° contact angle optimised for balanced radial and axial load handling
- Sheet steel cage for reliable ball retention and smooth operation
- Standard arrangement with normal radial clearance for versatile mounting
- Non-separable design ensuring integrated, dependable performance
- Precision engineered to SKF's exacting quality standards
- Operating temperature range: -20°C to +150°C
- Tolerance class P0/PN2 (ABEC 1) for consistent precision performance
Typical Applications:
- Gearboxes and heavy-duty transmission systems
- Electric motors and spindles
- Machine tool applications
- Automotive and industrial equipment
- High-speed rotating machinery
- Precision industrial equipment requiring combined load handling
SKF's reputation for exceptional quality and reliability makes the 3310-A a trusted choice for demanding applications. Most items are in stock for immediate dispatch.
