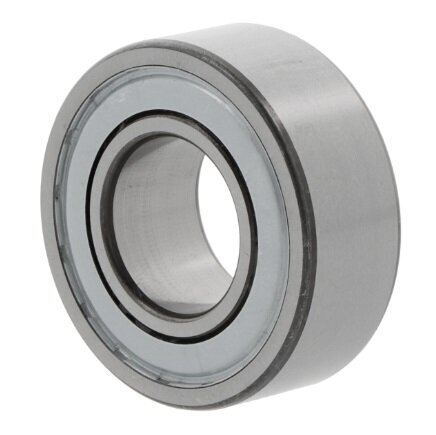

3308-BD-XL-2Z-C3 FAG Angular Contact Ball Bearing 40mm x 90mm x 36.5mm
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
FAG
Cage
Sheet steel cage
Clearance
Slightly increased radial clearance
Contact angle
30 degree
Inside Dia
40mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
90mm
Row Type
Double
Seal
Cover on both sides
Temperature range
-30 to +120 °C
Tolerance class
Tolerance class P6 / ABEC 3
Width
36.5mm
Reference
3308-BD-XL-2Z-C3
Additional Reference:
10153692
Quick Order Code
BB-525600
Product Description
3308-BD-XL-2Z-C3 FAG Double Row Angular Contact Ball Bearing
Premium double row angular contact ball bearing engineered by FAG for demanding industrial applications requiring simultaneous radial and axial load handling. The 3308-BD-XL-2Z-C3 is specifically designed for high-performance machinery where precision, durability, and reliable operation are essential. With its larger bore diameter and robust construction, this bearing delivers exceptional performance in heavy-duty environments.
Specifications:
- Bore Diameter: 40mm
- Outer Diameter: 90mm
- Width: 36.5mm
- Row Type: Double Row
- Brand: FAG
- Reference: 3308-BD-XL-2Z-C3
- Contact Angle: 30°
- Clearance: Slightly increased radial clearance (C3)
- Cage Material: Sheet steel cage
- Seal Type: Cover on both sides (2Z)
- Bearing Material: Standard bearing steel
- Outer Ring: Without flange/groove
- Arrangement: Standard version
- Tolerance Class: P6/ABEC 3
- Operating Temperature Range: -30°C to +120°C
Key Features:
- Double row design maximizes load carrying capacity for heavy-duty applications requiring enhanced radial and axial support
- 30° contact angle optimized for balanced load distribution and stable operation under combined loads
- Slightly increased radial clearance (C3) accommodates thermal expansion and provides flexibility in installation conditions
- Protective covers on both sides (2Z) shield against contamination while allowing for easier maintenance compared to sealed designs
- Sheet steel cage ensures structural integrity and reliable performance in demanding industrial environments
- P6/ABEC 3 tolerance class delivers precision performance suitable for most industrial machinery applications
- Extended temperature range (-30°C to +120°C) for operation in varying environmental conditions
- FAG quality assurance and manufacturing excellence
Applications:
- Industrial gearboxes and heavy-duty transmission systems
- Large electric motors and power transmission equipment
- Machine tool spindles and precision machining centers
- Pump and compressor main shafts
- Automotive and industrial equipment requiring robust bearing solutions
- Conveyor systems and material handling equipment
- Wind turbine generators and renewable energy applications
- Heavy industrial machinery operating under continuous or intermittent loads
