Bearings
Angular Contact Bearings
Angular Contact Bearings
Quick Code: BB-502832

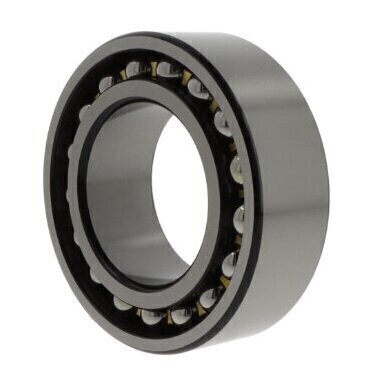

3217-M NKE Double Row Angular Contact Ball Bearing 85mm x 150mm x 49.2mm
3217-M NKE Double Row Angular Contact Ball Bearing
This robust double row angular contact ball bearing from NKE is engineered to handle simultaneous radial and axial loads in both directions, making it ideal for high-speed precision applications requiring enhanced load capacity. The dual-row configuration provides superior performance compared to single-row bearings, delivering reliable operation in demanding industrial environments.
Key Features:
- Double row design for increased load capacity and rigidity
- 35° contact angle for optimal load distribution and performance
- Brass cage with ball centring for smooth, stable operation
- Standard bearing steel construction for durability and reliability
- Normal radial clearance for universal mounting applications
- Open bearing design without seals for easy maintenance
- Manufactured by NKE, a trusted bearing specialist known for quality engineering
Specifications:
- Bore Diameter: 85mm
- Outside Diameter: 150mm
- Width: 49.2mm
- Configuration: Double Row
- Contact Angle: 35°
- Cage Material: Brass
- Clearance: Normal radial clearance
- Tolerance Class: P0/PN2 (ABEC 1)
- Operating Temperature Range: -20°C to +150°C
- Reference Number: 3217-M
Applications:
This bearing is particularly well-suited for gearboxes, spindles, machine tool spindles, and other heavy-duty equipment where combined radial and axial loading in both directions is required. It excels in high-speed machinery and precision applications across automotive, industrial, and manufacturing sectors.
In stock for immediate dispatch. Contact us if you require additional sizes or specifications.
