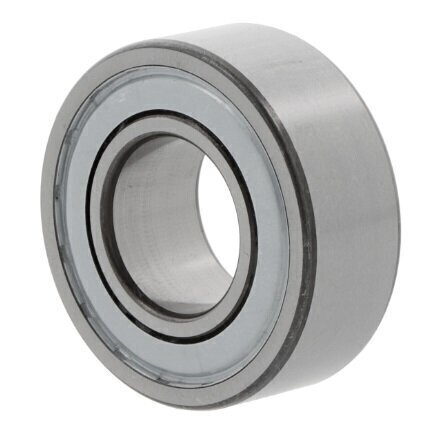

3209-BD-XL-2Z FAG Double Row Angular Contact Ball Bearing 45mm x 85mm x 30.2mm
3209-BD-XL-2Z FAG Double Row Angular Contact Ball Bearing
This premium double row angular contact ball bearing from FAG delivers exceptional performance in demanding applications requiring simultaneous radial and axial load handling. With a 30° contact angle and protective covers on both sides, the 3209-BD-XL-2Z combines robust durability with precision engineering for reliable operation across a wide temperature range.
Key Features:
- Double row configuration for increased load capacity and enhanced rigidity
- 30° contact angle for optimal radial and axial load distribution
- Metal covers on both sides (2Z) for superior contamination protection and extended bearing life
- Sheet steel cage design for reliable performance and stability
- Normal radial clearance for standard applications and flexible mounting options
- Precision tolerance class P6 (ABEC 3) for high-accuracy performance
- Standard bearing steel construction manufactured to FAG's exacting quality standards
Specifications:
- Bore Diameter: 45mm
- Outer Diameter: 85mm
- Width: 30.2mm
- Row Type: Double Row
- Contact Angle: 30°
- Cage Material: Sheet Steel
- Seal Type: Metal covers on both sides
- Clearance: Normal radial clearance
- Tolerance Class: P6 / ABEC 3
- Operating Temperature Range: -30°C to +120°C
- Material: Standard bearing steel
- Arrangement: Standard version
- Manufacturer: FAG
Applications:
This bearing is ideal for high-speed, precision applications including electric motors, gearboxes, spindle assemblies, pumps, and industrial compressors. The dual metal covers make it particularly suitable for environments where dust and moisture protection is essential, while the double row configuration provides enhanced load capacity for heavy-duty equipment operating across varied temperature conditions. Perfect for demanding industrial environments requiring reliable, long-lasting bearing performance.
