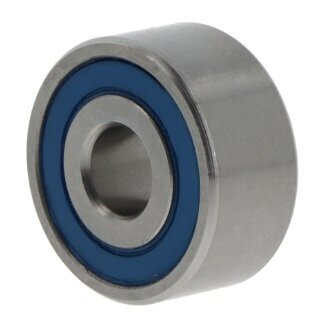

3209-B-2RS Zen Double Row Angular Contact Ball Bearing 45mm x 85mm x 30.2mm
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
Zen
Cage
Polyamide cage
Clearance
Normal radial clearance
Contact angle
40 degree
Inside Dia
45mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
85mm
Row Type
Double
Seal
Lip seal on both sides
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
30.2mm
Reference
3209-B-2RS
Additional Reference:
10127299
Quick Order Code
BB-517175
Product Description
3209-B-2RS Zen Double Row Angular Contact Ball Bearing
The 3209-B-2RS is a premium double row angular contact ball bearing from Zen, engineered to deliver exceptional performance in high-speed precision applications requiring simultaneous radial and axial load capacity. This robust bearing combines reliable construction with advanced sealing technology, making it an ideal choice for demanding industrial equipment and machinery.
Bearing Specifications:
- Bore Diameter: 45mm
- Outer Diameter: 85mm
- Width: 30.2mm
- Bearing Type: Double Row Angular Contact
- Contact Angle: 40°
- Arrangement: Standard version
- Seal Type: Lip seal on both sides (2RS)
- Reference Number: 3209-B-2RS
Key Characteristics:
- Double row configuration for enhanced load-carrying capacity and rigidity
- Designed to accommodate combined radial and axial loads acting simultaneously
- 40° contact angle provides excellent load distribution and operational smoothness
- Lip seals on both sides offer superior protection against contamination and moisture ingress
- Polyamide cage construction for reliable performance and durability
- Normal radial clearance optimised for standard industrial applications
- Standard bearing steel material manufactured to Zen's quality standards
- Outer ring without flange or groove for compact integration
- Operating temperature range: -20°C to +120°C
- Tolerance class P0/PN2 (ABEC 1) for precision engineering
Typical Applications:
- Gearboxes and heavy-duty transmission systems
- Electric motors and high-speed spindles
- Machine tool equipment and precision spindles
- Automotive applications and drivetrain systems
- Industrial machinery requiring protection from harsh environments
- Applications requiring combined radial and axial load capacity
- Equipment operating in contaminated or moisture-prone conditions
The 3209-B-2RS represents an excellent choice for industrial applications demanding superior reliability and performance at high speeds, with the added benefit of integrated sealing for enhanced protection in challenging environments.
