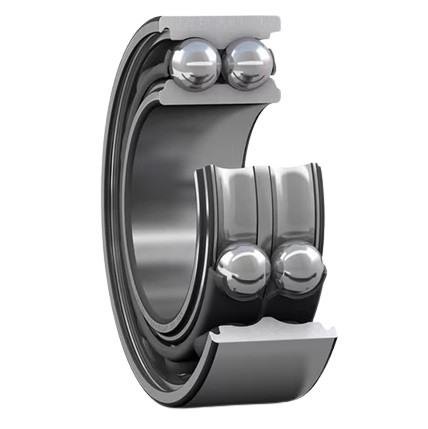

3205-A SKF Double Row Angular Contact Ball Bearing
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
SKF
Cage
Sheet steel cage
Clearance
Normal radial clearance
Contact angle
30 degree
Inside Dia
25mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
52mm
Row Type
Double
Seal
None, open bearing
Temperature range
-20 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
20.6mm
Reference
3205A
Additional Reference:
10086427
Quick Order Code
BB-506342
Product Description
The 3205-A SKF Double Row Angular Contact Ball Bearing is a precision-engineered bearing designed to handle combined radial and axial loads in high-speed applications. This double row configuration delivers superior load capacity while maintaining smooth, reliable operation across demanding industrial environments.
Key Specifications:
- Bore Diameter: 25mm
- Outer Diameter: 52mm
- Width: 20.6mm
- Bearing Type: Double Row Angular Contact Ball
- Contact Angle: 30°
- Arrangement: Standard version
- Seal Type: Open bearing (none)
- Cage: Sheet steel cage
- Clearance: Normal radial clearance
- Tolerance Class: P0/PN2 (ABEC 1)
- Material: Standard bearing steel
- Manufacturer: SKF
- Operating Temperature Range: -20°C to +150°C
Features & Benefits:
- Double row construction maximizes load carrying capacity for simultaneous radial and axial loads
- SKF precision engineering ensures superior performance and reliability
- Sheet steel cage provides cost-effective durability
- 30° contact angle optimized for balanced load distribution
- Open design suitable for clean environments or applications with external filtration
- Normal clearance configuration for standard applications
- Wide temperature range (-20°C to +150°C) for versatile operating conditions
Typical Applications:
- Electric motor spindles
- Gearboxes and transmission systems
- Machine tool equipment
- Pumps and compressors
- Industrial machinery requiring precision and dual load capability
- High-speed rotating equipment
The 3205-A is an excellent choice for applications demanding reliable performance under combined loading conditions. SKF's renowned quality and precision make this bearing ideal for OEM and replacement applications in industrial machinery.
