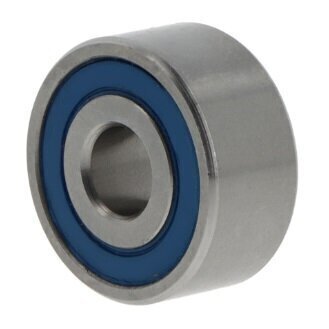

3203-B-2RS-TV-C3 NKE Double Row Angular Contact Ball Bearing 17mm x 40mm x 17.5mm
3203-B-2RS-TV-C3 NKE Double Row Angular Contact Ball Bearing
This premium double row angular contact ball bearing from NKE is engineered to deliver exceptional performance in high-speed precision applications requiring simultaneous radial and axial load handling. The 3203-B-2RS-TV-C3 combines robust construction with reliable precision, making it an ideal choice for demanding industrial and automotive applications where durability and performance are critical.
Bearing Specifications:
- Bore Diameter: 17mm
- Outer Diameter: 40mm
- Width: 17.5mm
- Contact Angle: 40°
- Row Type: Double Row
- Cage Type: Polyamide cage
- Seal Type: Lip seal on both sides (2RS)
- Radial Clearance: Slightly increased (C3)
- Material: Standard bearing steel
- Tolerance Class: P0/PN2 (ABEC 1)
- Operating Temperature Range: -20°C to +150°C
- Outer Ring: Without flange or groove
- Arrangement: Standard version
- Reference Number: 3203-B-2RS-TV-C3
Key Features:
- 40° contact angle optimized for superior axial load capacity and high-speed performance
- Double row configuration providing exceptional load capacity and stiffness in a compact axial profile
- Polyamide cage design ensures reliable ball centring and smooth, consistent operation
- Lip seal protection on both sides offers enhanced protection against contamination while maintaining easy maintenance access
- C3 clearance provides operational flexibility for applications with thermal expansion and demanding operating conditions
- Extended temperature range (-20°C to +150°C) suitable for high-temperature and challenging industrial environments
- NKE quality standards delivering exceptional reliability, precision, and longevity
- Compact design ideal for space-constrained applications
- Capable of accommodating tilting moments and complex loading scenarios
Applications:
This bearing is ideal for high-speed spindles, precision machine tools, electric motors, automotive transmissions, pumps, compressors, and heavy-duty industrial machinery requiring combined radial and axial load handling. The sealed design with lip seals makes it particularly suitable for applications in dirty or contaminated environments where protection is essential, while the C3 clearance accommodates thermal expansion in demanding applications. The compact double row configuration enables use in space-limited installations such as gearboxes, precision equipment, and other critical rotating equipment where maximum load capacity is required within minimal axial space.
Reference Number: 3203-B-2RS-TV-C3
