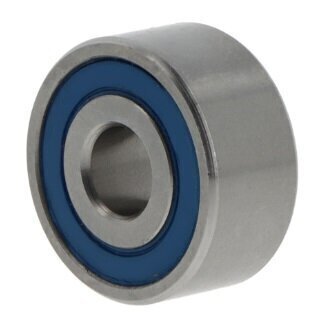

3202-BD-XL-2HRS FAG Double Row Angular Contact Ball Bearing 15mm x 35mm x 15.9mm
3202-BD-XL-2HRS FAG Double Row Angular Contact Ball Bearing
The 3202-BD-XL-2HRS FAG Double Row Angular Contact Ball Bearing is a precision-engineered bearing designed to handle simultaneous radial and axial loads in both directions. As a double row angular contact bearing, it delivers superior load-carrying capacity and rigidity compared to single row designs, making it an ideal choice for demanding applications requiring enhanced stability and durability.
FAG manufactures premium quality bearings renowned for their reliability and precision across a wide range of industrial sectors. This double row bearing combines advanced engineering with robust construction to meet the exacting demands of modern machinery and equipment.
Key Features:
- Double row design for increased load capacity and exceptional rigidity
- 30° contact angle for optimal radial and axial load distribution
- Lip seals on both sides providing enhanced protection against contaminants and moisture
- Sheet steel cage design for stable ball retention and reduced friction
- Standard bearing steel construction for durability and long service life
- Normal radial clearance for improved operational flexibility
- Tolerance class P6 / ABEC 3 for consistent precision performance
- Wide temperature range operation from -20°C to +150°C
Specifications:
- Bore Diameter: 15mm
- Outside Diameter: 35mm
- Width: 15.9mm
- Row Type: Double Row
- Brand: FAG
- Reference: 3202-BD-XL-2HRS
- Contact Angle: 30°
- Cage Material: Sheet steel
- Seal Type: Lip seal on both sides
- Radial Clearance: Normal
- Temperature Range: -20°C to +150°C
- Tolerance Class: P6 / ABEC 3
- Outer Ring: Without flange/groove
- Material: Standard bearing steel
- Arrangement: Standard version
Applications:
This compact double row bearing is ideal for precision applications including electric motors, spindles, pump shafts, compressors, and gearboxes. The double row configuration makes it particularly suitable for equipment requiring enhanced load capacity and operational stability under combined radial and axial loading conditions. The lip seal design on both sides provides excellent protection against contamination and moisture ingress, making it well-suited for both industrial and automotive environments where added sealing performance is essential. Its extended temperature range makes it particularly suitable for applications operating in varied thermal conditions.
