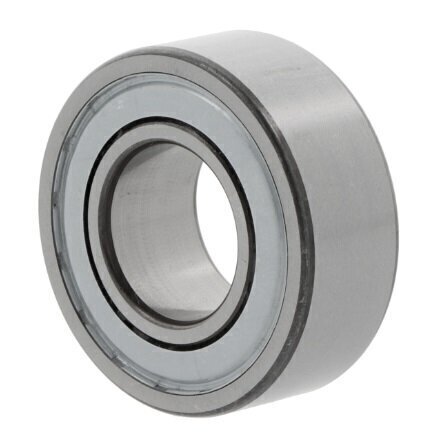

3202-B-2Z-TV-C3 NKE Double Row Angular Contact Ball Bearing 15mm x 35mm x 15.9mm
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Brand
NKE
Cage
Polyamide cage
Clearance
Slightly increased radial clearance
Inside Dia
15mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
35mm
Row Type
Double
Seal
Cover on both sides
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
15.9mm
Reference
3202-B-2Z-TV-C3
Additional Reference:
10174996
Quick Order Code
BB-530100
Product Description
3202-B-2Z-TV-C3 NKE Double Row Angular Contact Ball Bearing
This premium double row angular contact ball bearing from NKE is engineered to handle simultaneously acting radial and axial loads in both directions. The compact 15mm bore design combined with double row configuration provides exceptional stiffness and load-carrying capacity, making it ideal for precision applications requiring combined loading capabilities and superior rigidity in a space-efficient format.
Product Specifications:
- Bore Diameter: 15mm
- Outer Diameter: 35mm
- Width: 15.9mm
- Configuration: Double Row Angular Contact
- Row Type: Double
- Cage Material: Polyamide
- Clearance: Slightly increased radial clearance (C3)
- Seal Type: Covers on both sides (2Z)
- Outer Ring: Without flange or groove
- Tolerance Class: P0/PN2 (ABEC 1)
- Material: Standard bearing steel
- Manufacturer: NKE
- Reference Number: 3202-B-2Z-TV-C3
Design & Performance Features:
- Double row configuration delivers exceptional stiffness and increased load-carrying capacity
- Polyamide cage ensures smooth operation, reduced friction, and reliable ball guidance
- Slightly increased radial clearance (C3) suitable for applications with thermal expansion or minor misalignment tolerance
- Accommodates loads acting in both directions with precision and reliability
- Protective covers on both sides (2Z) shield the bearing from contamination and dust ingress while maintaining lubrication
- Precision engineering ensures consistent quality and durability
- Compact size ideal for space-constrained applications
Ideal Applications:
The 3202-B-2Z-TV-C3 is well-suited for:
- Precision spindles and machine tool applications
- Gearboxes and transmission systems
- Electric motors and small pumps
- Automotive components with combined bi-directional loading
- Industrial equipment requiring compact bearing solutions
- High-speed applications demanding stiff bearing arrangements
- Applications where increased radial clearance provides thermal compensation benefits
NKE's commitment to precision engineering and quality manufacturing makes this angular contact bearing the ideal choice for demanding applications requiring reliability under combined loading conditions in a compact package.
