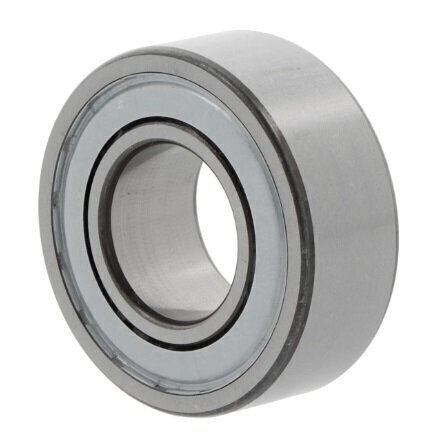

3201-B-2Z Zen Double Row Angular Contact Ball Bearing 12mm x 32mm x 15.9mm
The 3201-B-2Z Zen Double Row Angular Contact Ball Bearing is a precision bearing engineered to handle simultaneous radial and axial loads in both directions, making it an excellent choice for applications requiring compact, rigid bearing solutions. This double row configuration combines the functionality of two single row angular contact bearings while maintaining a minimal axial footprint.
Design & Construction
Angular contact ball bearings feature angularly displaced raceways in both inner and outer rings that enable efficient handling of combined loads—both radial and axial forces acting simultaneously. The double row design of this bearing creates an exceptionally rigid arrangement capable of supporting tilting moments and accommodating axial loads in both directions, ideal for demanding industrial applications requiring high stiffness.
Key Features
- Bore Diameter: 12mm
- Outer Diameter: 32mm
- Width: 15.9mm
- Row Configuration: Double row for superior load capacity and stiffness
- Contact Angle: 25° for optimal load distribution
- Seal Type: Metal covers on both sides (2Z) for enhanced contamination protection
- Cage Material: Polyamide cage for durability and reliability
- Material: Standard bearing steel construction
- Radial Clearance: Normal radial clearance for standard applications
- Tolerance Class: P0/PN2 (ABEC 1) precision grade
- Operating Temperature Range: -20°C to +120°C
- Manufacturer: Zen—a trusted bearing supplier
- Outer Ring: Without flange or groove for flexible mounting options
Typical Applications
This bearing is particularly suited for:
- Gearboxes and transmission systems
- Electric motors and spindle assemblies
- Industrial machinery with combined radial and axial loading
- Precision rotating equipment requiring compact mounting
- Heavy-duty applications requiring bidirectional axial load capacity
- Machine tool applications with moderate to high-speed operation
Reference: 3201-B-2Z-Zen
