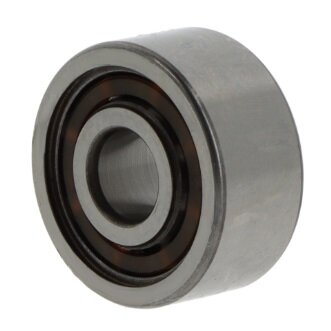

3201 BTNGC3 NSK Double Row Angular Contact Ball Bearing 12mm x 32mm x 15.9mm
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Arrangement
Bearing pair with a low axial clearance in O- and X-arrangem
Brand
NSK
Cage
Polyamide
Clearance
Slightly increased radial clearance
Contact angle
40 degree
Inside Dia
12mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
32mm
Row Type
Double
Seal
None, open bearing
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
15.9mm
Reference
3201BTNGC3
Additional Reference:
10097385
Quick Order Code
BB-508561
Product Description
3201 BTNGC3 NSK Double Row Angular Contact Ball Bearing
This compact double row angular contact ball bearing from NSK is engineered for precision applications requiring simultaneous radial and axial load handling in a compact footprint. With a 12mm bore and 32mm outer diameter, this bearing delivers reliable performance in space-constrained industrial applications while maintaining exceptional load capacity and rigidity.
Key Specifications:
- Dimensions: 12mm (bore) × 32mm (outer diameter) × 15.9mm (width)
- Brand: NSK
- Reference Number: 3201BTNGC3
- Row Type: Double row
- Contact Angle: 40 degrees – optimized for combined radial and axial loads
- Arrangement: Bearing pair configuration with low axial clearance in O- and X-arrangements
- Clearance: Slightly increased radial clearance
- Cage Material: Polyamide cage for lightweight, durable performance
- Material: Standard bearing steel
- Seal Type: Open bearing (no seals)
- Outer Ring: Without flange or groove
- Tolerance Class: P0/PN2 (ABEC 1)
- Operating Temperature Range: -20°C to +120°C
Features & Benefits:
- Double row design provides enhanced load capacity and exceptional rigidity in a compact package
- 40-degree contact angle enables efficient handling of significant axial and radial loads simultaneously
- Slightly increased radial clearance accommodates thermal expansion and ensures smooth operation under varying load conditions
- Polyamide cage delivers consistent low-friction performance and reliability
- Open design allows for easy maintenance, inspection, and custom lubrication strategies
- Precision-engineered for high-speed applications demanding accuracy and durability
- NSK quality assurance ensures dependable performance and longevity
Ideal Applications:
- Electric motors and servo motors
- Precision spindle systems
- Gearboxes and transmission units
- Machine tool equipment
- Automotive components
- Industrial pumps and compressors
- Rotating shafts requiring dual directional load support
- Space-constrained machinery requiring compact bearing solutions
The 3201 BTNGC3 is an excellent choice for OEMs and maintenance professionals seeking a reliable, compact double row angular contact bearing solution that combines NSK's precision engineering with practical versatility for demanding industrial environments.
