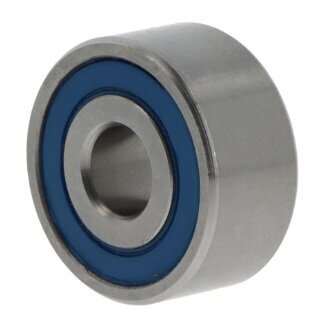

30/8-B-2RS-TVH FAG Angular Contact Ball Bearing 8mm x 22mm x 11mm
30/8-B-2RS-TVH FAG Double Row Angular Contact Ball Bearing
This compact FAG double row angular contact ball bearing is engineered to deliver reliable performance in precision applications requiring simultaneous radial and axial load capacity. With an 8mm bore and 22mm outer diameter, this bearing combines robust construction with protective sealing, making it ideal for compact machinery and precision equipment where space is at a premium.
Key Specifications:
- Bore Diameter: 8mm
- Outer Diameter: 22mm
- Width: 11mm
- Configuration: Double Row
- Manufacturer: FAG
- Reference Number: 30/8-B-2RS-TVH
Technical Features:
- Double row design providing enhanced load capacity and superior stability
- Lip seal on both sides (2RS) delivering excellent protection against dust, moisture, and contaminants
- Polyamide cage construction ensuring smooth and efficient operation
- Normal radial clearance for standard applications
- Standard bearing steel construction with FAG quality assurance
- Tolerance class P0/PN2 / ABEC 1 for dependable performance
- Operating temperature range: -20°C to +120°C
- Standard arrangement outer ring without flange or groove
Applications:
This bearing is particularly well-suited for electric motors, small gearboxes, precision instruments, spindle applications, and other compact machinery requiring sealed double row angular contact bearings with combined load capacity. The dual seal design and robust construction make this bearing ideal for applications where contamination prevention and extended service life are essential, including small automotive components, precision mechanical equipment, and general industrial machinery operating in challenging environments.
In stock for immediate dispatch. Contact us for availability or if you require alternative sizes or specifications.
