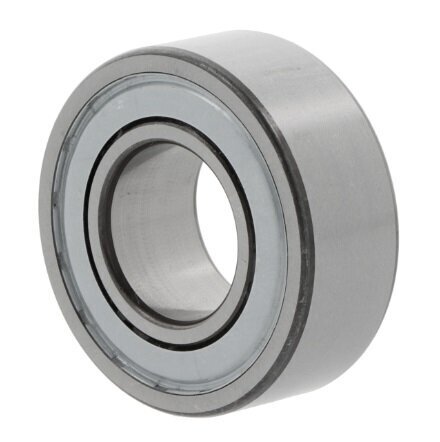

3002-2Z NKE Double Row Angular Contact Ball Bearing 15mm x 32mm x 13mm
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
NKE
Cage
Sheet steel cage
Clearance
Normal radial clearance
Contact angle
35 degree
Inside Dia
15mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
32mm
Row Type
Double
Seal
Cover on both sides
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
13mm
Reference
3002-2Z
Additional Reference:
10237716
Quick Order Code
BB-498773
Product Description
3002-2Z NKE Double Row Angular Contact Ball Bearing
The 3002-2Z is a reliable double-row angular contact ball bearing from NKE, engineered to handle simultaneous radial and axial loads in demanding industrial applications. This compact bearing combines the load capacity of two single-row bearings while maintaining a space-efficient profile, making it ideal for precision machinery and equipment requiring high-speed operation.
Specifications:
- Bore Diameter: 15mm
- Outside Diameter: 32mm
- Width: 13mm
- Row Type: Double Row
- Manufacturer: NKE
- Contact Angle: 35 degrees
- Cage Type: Sheet steel cage
- Sealing: Covers on both sides (2Z)
- Clearance: Normal radial clearance
- Tolerance Class: P0/PN2 (ABEC 1)
- Operating Temperature Range: -20°C to +120°C
- Material: Standard bearing steel
Key Features:
- Double-row configuration for optimized load distribution and capacity
- 35-degree contact angle for enhanced axial load capability
- Protected design with metal covers on both sides for sealed operation
- Sheet steel cage for reliable ball guidance and retention
- Normal radial clearance suitable for standard applications
- Compact dimensions ideal for space-constrained installations
- Durable NKE engineering and quality assurance
- Wide operating temperature range for versatile applications
Typical Applications:
- Electric motors and rotating machinery
- Gearboxes and transmission equipment
- Machine tool spindles and precision equipment
- Industrial pumps and compressors
- Automotive and light industrial applications
- Conveyor systems and material handling equipment
The 3002-2Z delivers proven NKE quality and reliability for applications requiring both radial and axial load support at moderate to high speeds.
