Quick Code: BB-525444

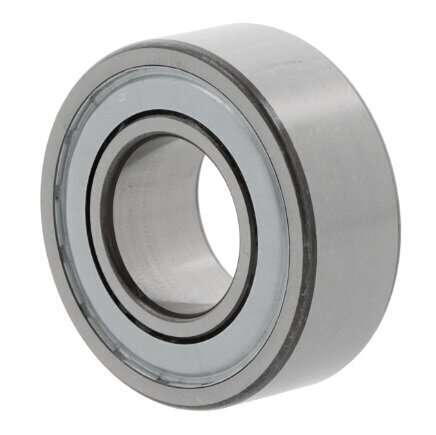

3001-RS-Z-L091-C3 INA Double Row Angular Contact Ball Bearing 12mm x 28mm x 12mm
3001-RS-Z-L091-C3 INA Double Row Angular Contact Ball Bearing
The 3001-RS-Z-L091-C3 is a compact double row angular contact ball bearing from INA, engineered for precision applications requiring simultaneous radial and axial load capacity in a minimal footprint. With its 25-degree contact angle and sealed design, this bearing delivers reliable performance while maintaining protection from contamination, making it ideal for space-constrained applications in industrial and precision machinery environments.
Technical Specifications:
- Bore Diameter: 12mm
- Outer Diameter: 28mm
- Width: 12mm
- Contact Angle: 25°
- Row Type: Double row
- Arrangement: Standard version
- Seal Type: Cover on both sides (RS-Z)
- Cage Material: Sheet steel cage
- Radial Clearance: Slightly increased
- Tolerance Class: P0/PN2 (ABEC 1)
- Material: Standard bearing steel
- Outer Ring: Without flange or groove
Applications:
This bearing is well-suited for electric motors, small gearboxes, precision machine tools, pump assemblies, and other compact equipment where space efficiency is critical. The sealed design with covers on both sides provides excellent protection against dust and contamination, making it ideal for varied industrial environments. The 25-degree contact angle ensures smooth operation with combined radial and axial loading, while the double row configuration maximizes load capacity in a compact form factor. The slightly increased radial clearance allows for optimal performance in applications with moderate temperature variations.
As an INA product, this bearing is backed by the manufacturer's reputation for precision engineering and reliability, with stock availability for immediate dispatch.
