Bearings
Angular Contact Bearings
Angular Contact Bearings
Quick Code: BB-534910

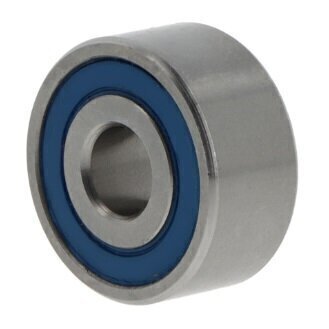

3000-2RS NKE Double Row Angular Contact Ball Bearing 10mm x 26mm x 12mm
3000-2RS NKE Double Row Angular Contact Ball Bearing
This compact double row angular contact ball bearing from NKE is engineered for high-speed precision applications requiring simultaneous radial and axial load capacity. With dimensions of 10mm x 26mm x 12mm, this bearing combines a small footprint with reliable performance, making it ideal for space-constrained industrial and commercial equipment.
Key Features:
- Double row configuration for increased load capacity and superior radial stiffness
- 35° contact angle optimized for balanced radial and axial load distribution
- Sheet steel cage construction for robust and reliable performance
- Lip seal protection on both sides (2RS design) for enhanced contamination resistance and extended bearing life
- Normal radial clearance suitable for standard industrial applications
- Standard bearing steel material ensuring durability and reliable strength
- Outer ring without flange or groove for flexible mounting options
- Standard arrangement version for versatile industrial configurations
Specifications:
- Bore Diameter: 10mm
- Outer Diameter: 26mm
- Width: 12mm
- Type: Double Row Angular Contact
- Contact Angle: 35°
- Cage Material: Sheet steel
- Seal Design: Lip seal on both sides
- Clearance: Normal radial clearance
- Tolerance Class: P0/PN2 / ABEC 1
- Operating Temperature Range: -20°C to +120°C
- Manufacturer: NKE
- Reference Number: 3000-2RS
Ideal Applications:
This bearing is well-suited for precision machinery, small electric motors, instrument spindles, gearbox systems, and compact rotating equipment where space efficiency and reliable combined load capacity are essential. The sealed design makes it particularly suitable for applications in environments prone to dust, moisture, or other contaminants. Perfect for industrial automation equipment, precision instruments, pump and motor assemblies, and general industrial machinery requiring dependable high-speed performance in a compact package.
NKE's precision manufacturing standards ensure consistent quality and reliability for your most demanding compact bearing applications.
Reference: 3000-2RS NKE
