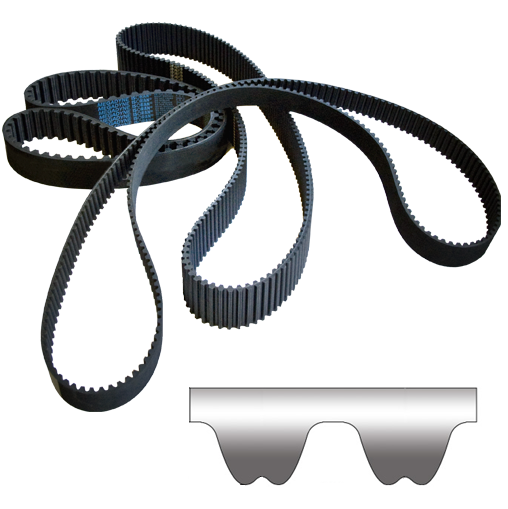

1790-RPP5-14 Megadyne Isoran Metric Timing Belt (1790-5M-14)
Also Try
Z Belts (10mm x 6mm)
Thin Section Ball Bearings
Taper Bushes
5M Section Timing Pulley (5mm)
5M Taperlock Timing Pulley
Buy Now
Qty:
Product Specification
Brand
Megadyne
Number of Teeth
358
Pitch Length
1790mm
Width
14mm
Reference
110430550564 (1790 RPP5 14)
Quick Order Code
BB-395730
Product Description

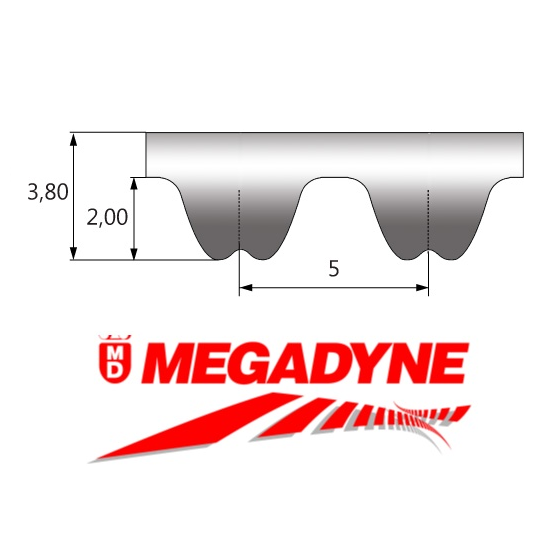

Please note that if the Megadyne brand is not in stock an equivalent quality brand will be sent.Isoran RPP is the classic type of Isoran transmission belt, made in chloroprene rubber and suited for a very wide range of applications. The parabolic profile of Isoran RPP has a progressive angle starting from the root of the tooth, up to the tip. This allows to have a taller tooth with the same pitch length. The groove on top permits a smoother engagement, a better meshing of the tooth with the pulley and less wear of the belts.
Main componentsKey Features
