3M272 Polyflex PU V Belt

Name: 3M272 Polyflex PU V Belt
Brand: Gates
SKU: 8901-00272 (3M272)
Price: 16.67 GBP
Availability: InStock

Longer lead time - please allow approximately 4-5 working days for delivery

Also Try

7M Polyflex V Belts

5M Polyflex V Belts

11M Polyflex V Belts

Buy Now

Qty:

Product Specification

Brand

Gates

Effective Length

272mm

Height

2.28mm

Top Width

3mm

Reference

8901-00272 (3M272)

Quick Order Code

BB-346741

Product Description

This compact and strong belt with nominal top width from 3 mm to 11 mm transmits more power and allows high speed ratios. Polyflex is suited for extremely small diameter pulleys and very compact drives with high rotational speeds. Ideal for use on machines and machine tools requiring high performance and smooth operation in limited space such as bench type milling machines, lathe drives, woodworking and metalworking machine spindle drives, computer peripheral equipment, small blowers, etc.

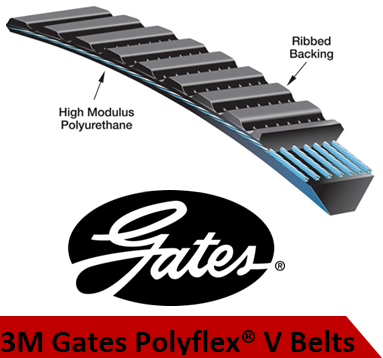

Construction

High modulus, new formulated polyurethane compound, superior to conventional belt materials, offers high fatigue and wear resistance and a high friction coefficient. It also improves adhesion to the tensile cords

Polyurethane is extremely resistant to heat, chemicals and oil

Uniformity throughout Polyflex is ensured because the polyurethane compound is not layered but cast without overlaps for smooth running and low vibration

Ribbed top provides lateral rigidity without increasing bending stresses

The 60 degree angle results in better support of the tensile section, and provides a more even load distribution.

Key Features

Design freedom and space savings which are not possible with conventional rubber construction belts

Low maintenance cost as belt needs less re-tensioning

Long belt life on compact drives

Temperature range: -54 deg C up to +85 deg C
